| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 450B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-30000 |
| Packaging Details: | Plywood packed with export sea standard. |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 50Sets per month |
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Die-casting Machine | Voltage: | 380V 50Hz |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Free Spare Parts,Field Installation | Weight: | 1800KG |
| Dimension(l*w*h): | 2330*1320*1260MM | Power(w): | 5.5kw |
| Function: | High Effieciency | Machine Type: | Semi Automatic |
| Highlight: | 5.5kw Gravity Die Casting Machine,Gravity Die Casting Machine Semi Automatic |
||

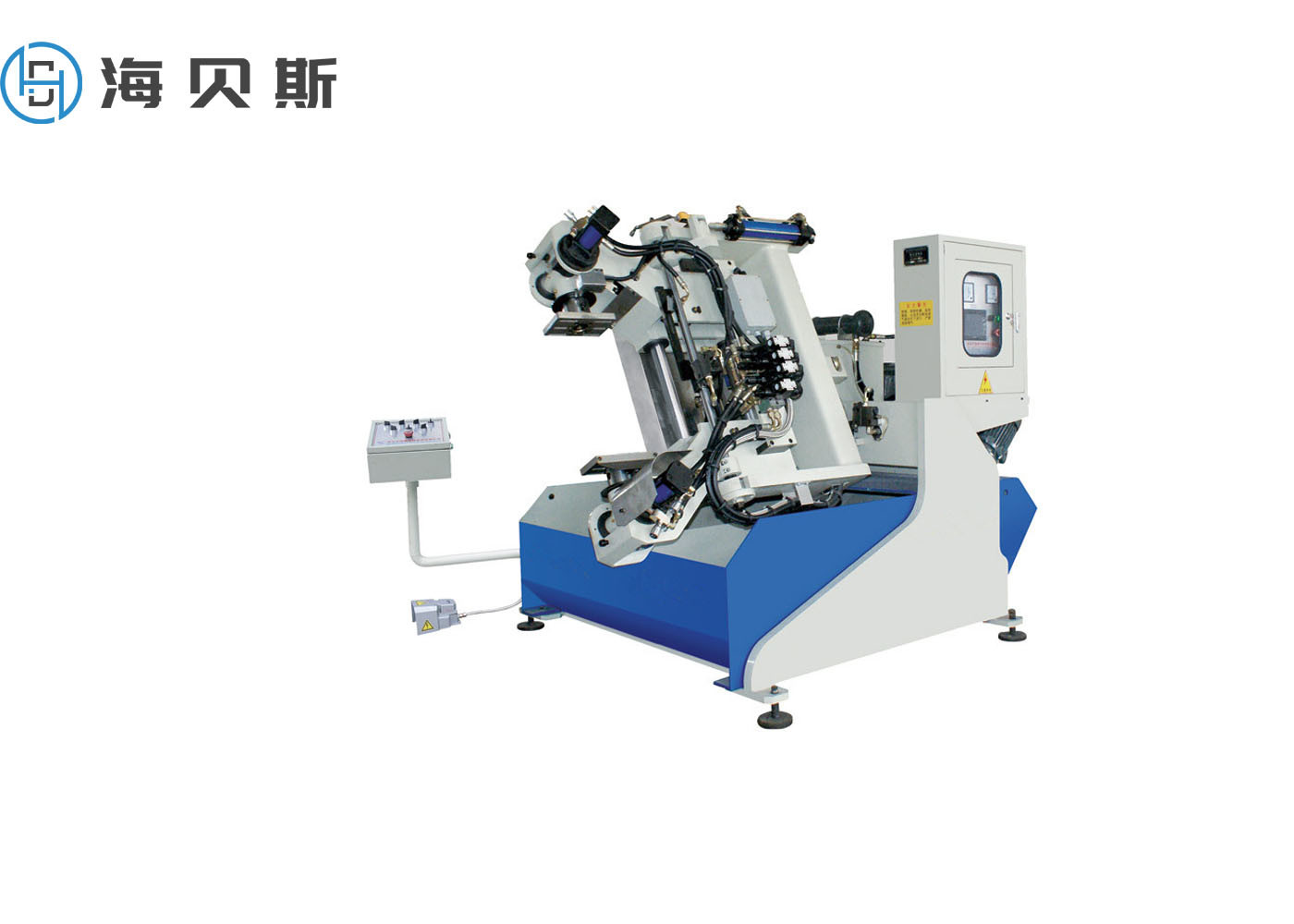

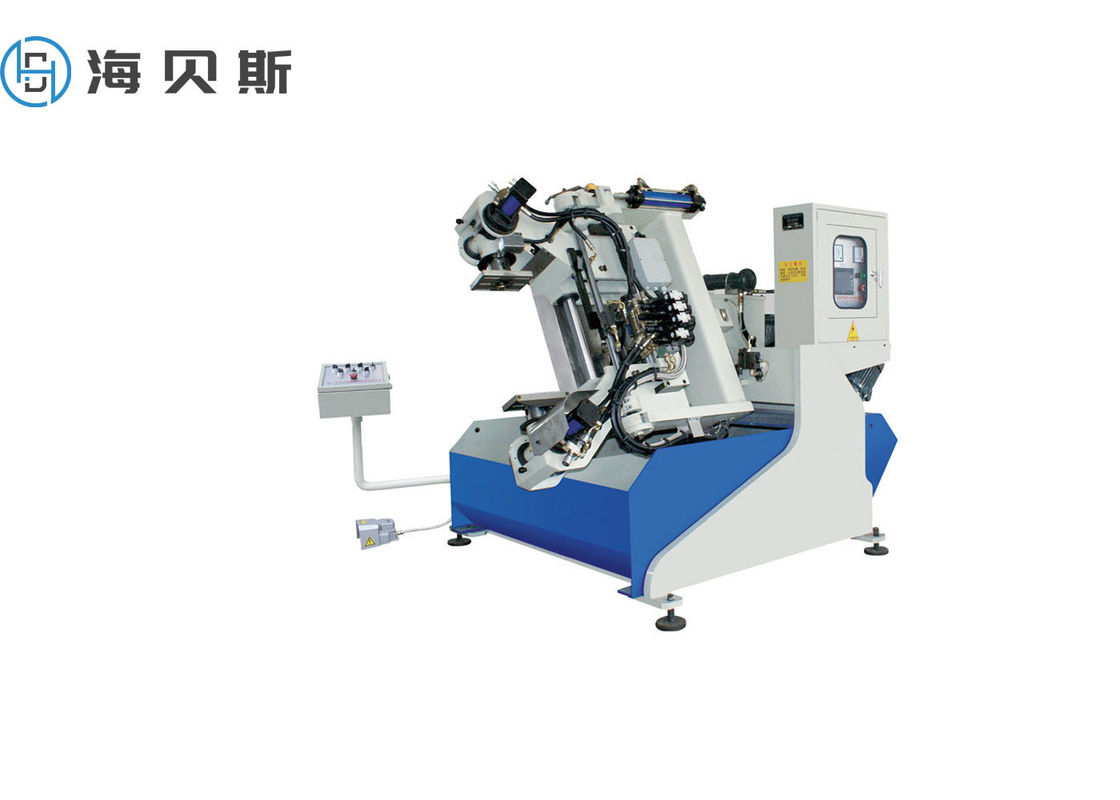

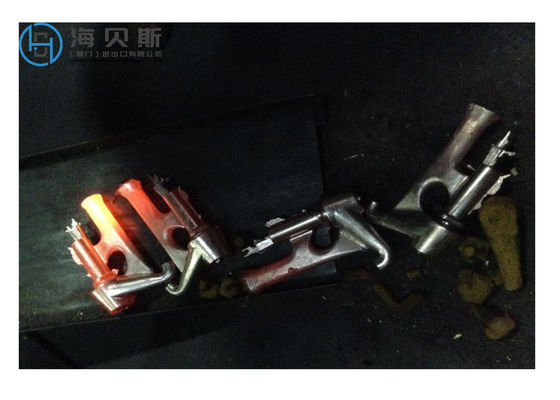

China Good Quality Gravity Casting Machine For Brass Casting Faucet Casting
Main Technical Parameters
| SL | SPECIFICATION | |
| 1 | Max Mold Size | φ450mm |
| 2 | Max Die Weight | 130kg |
| 3 | Max Merging Distance | ≤250mm |
| 4 | Oil Pressure | 40-60kpa |
| 5 | Side Pouring Angle | o°-90° |
| 6 | Positive Pouring Angle | 0°-110° |
| 7 | Power | 5.5kw |
| 8 | Net Weight | 1800kg |
| 9 | Dimension(L*W*H) | 2250*2160*1560(mm) |
Description&Characteristic

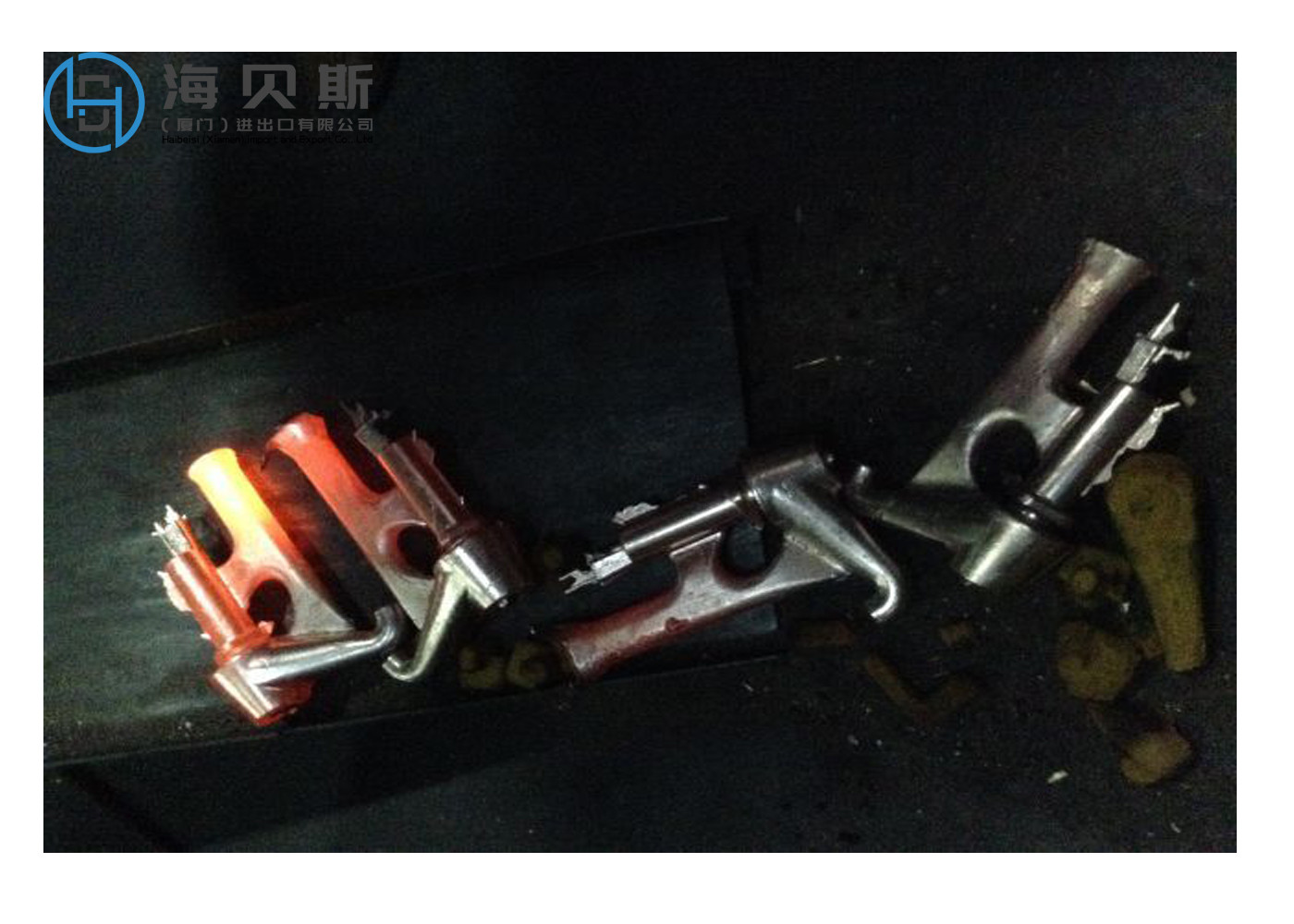

Gravity casting, also known as permanent mold casting, is a popular method for casting brass and other metals. It involves pouring molten metal into a permanent mold under the force of gravity. The mold is typically made of steel or cast iron and is designed to produce the desired shape of the faucet or other components.
Mold Preparation: The mold, typically made of steel, is prepared by coating the interior surfaces with a refractory coating to aid in metal release and enhance surface finish.

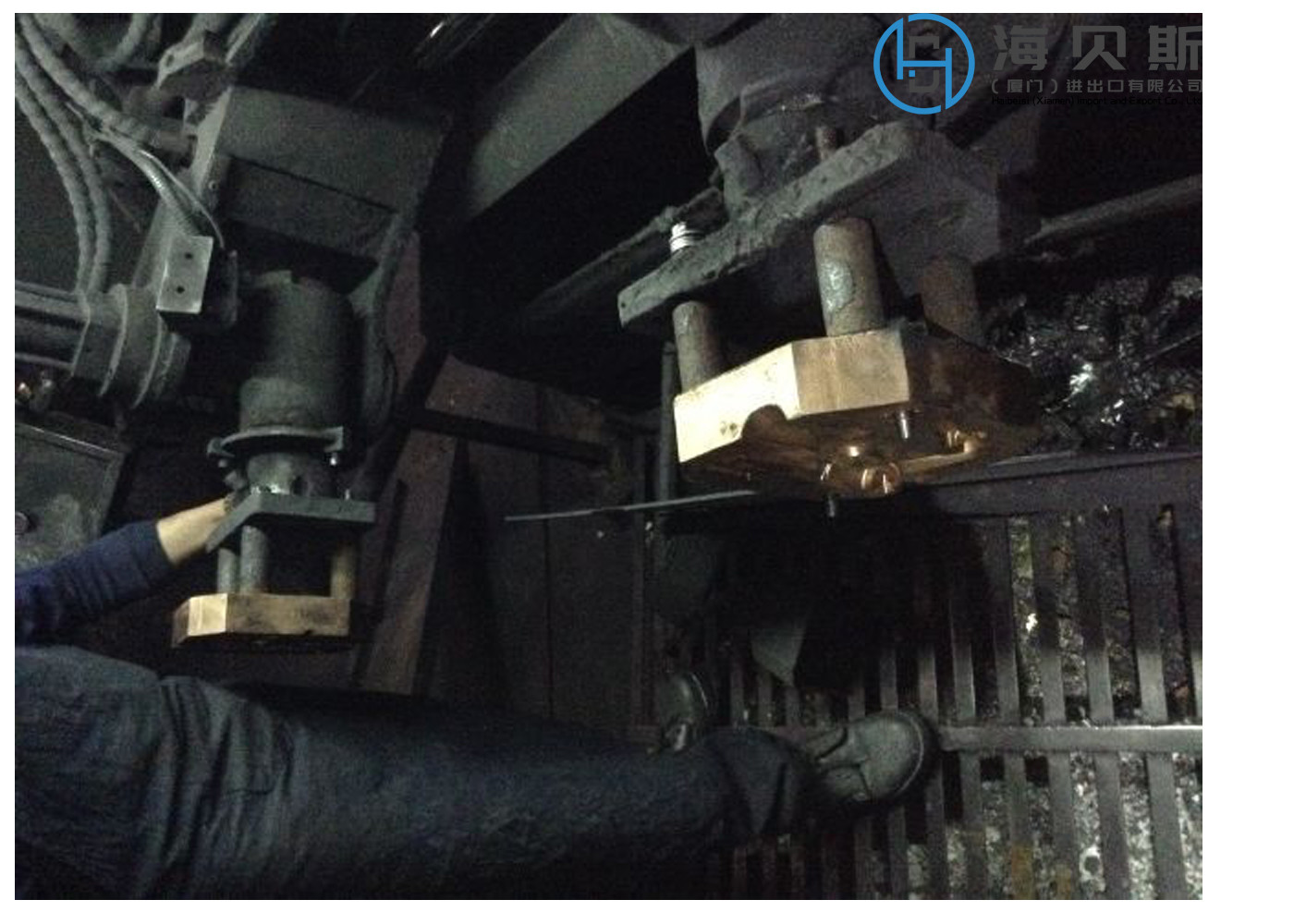

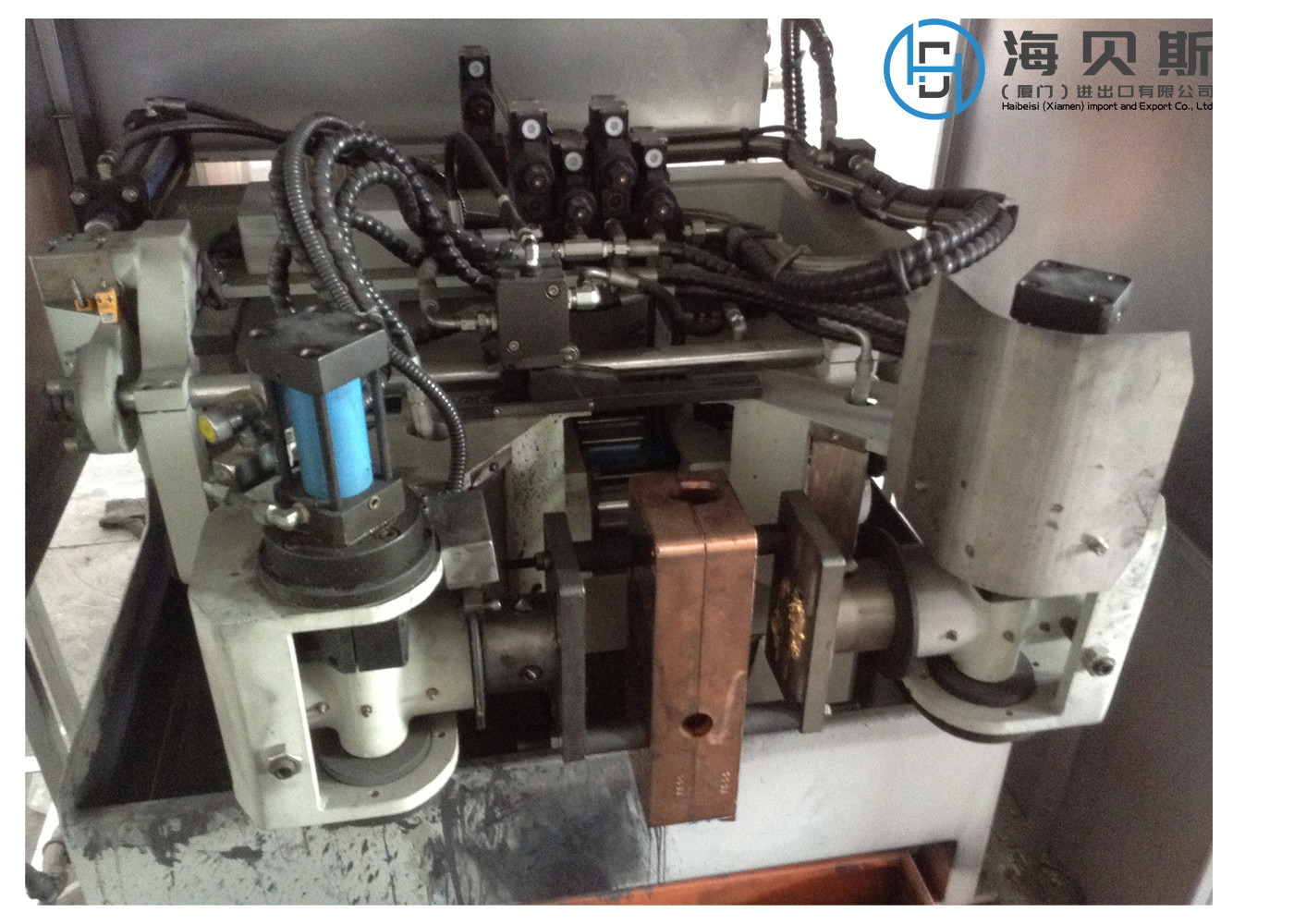

Mold Assembly: The mold is clamped together, creating a cavity that forms the desired shape of the casting. The mold may consist of multiple parts, including the stationary and movable halves.
Preheating: The mold is preheated to a specific temperature to ensure proper metal flow and solidification.
Metal Pouring: The molten metal, often aluminum or other non-ferrous alloys, is poured into the mold through a pouring basin or sprue. The force of gravity fills the mold cavity.
Solidification: The molten metal cools and solidifies inside the mold, taking the shape of the cavity. The cooling time depends on the size and complexity of the casting.
Packing and shipping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE GRAVITY DIE CASTING MACHINE?
A:It depends on your size of products.(Contact us for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 15-20days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
