| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | ISO,CE |
| Model Number: | 300-II |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 50Sets per month |
| Type: | Vertical Core Shooter | Name: | Hot Box Core Shooter |
|---|---|---|---|
| Condition: | New | AirPressure: | 0.6-0.8Mpa |
| Power: | 6KW | Voltage: | 380V |
| Weight: | 480KG | ||
| Highlight: | Vertical Hot Box Core Shooter,Hot Box Core Shooter 6kw |
||
China High Quality Core Shooter Machine For Brass Casting Bath Fitting Making
Main Technical Parameters
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 3.2kgs |
| 2 | Max Mold Size | 450*260*160mm |
| 3 | Core Pulling Distance | 150mm |
| 4 | Total Power | 6kw |
| 5 | Net Weight | 480kgs |
| 6 | Dimension | 1250*950*1900mm |
Description&Characteristic

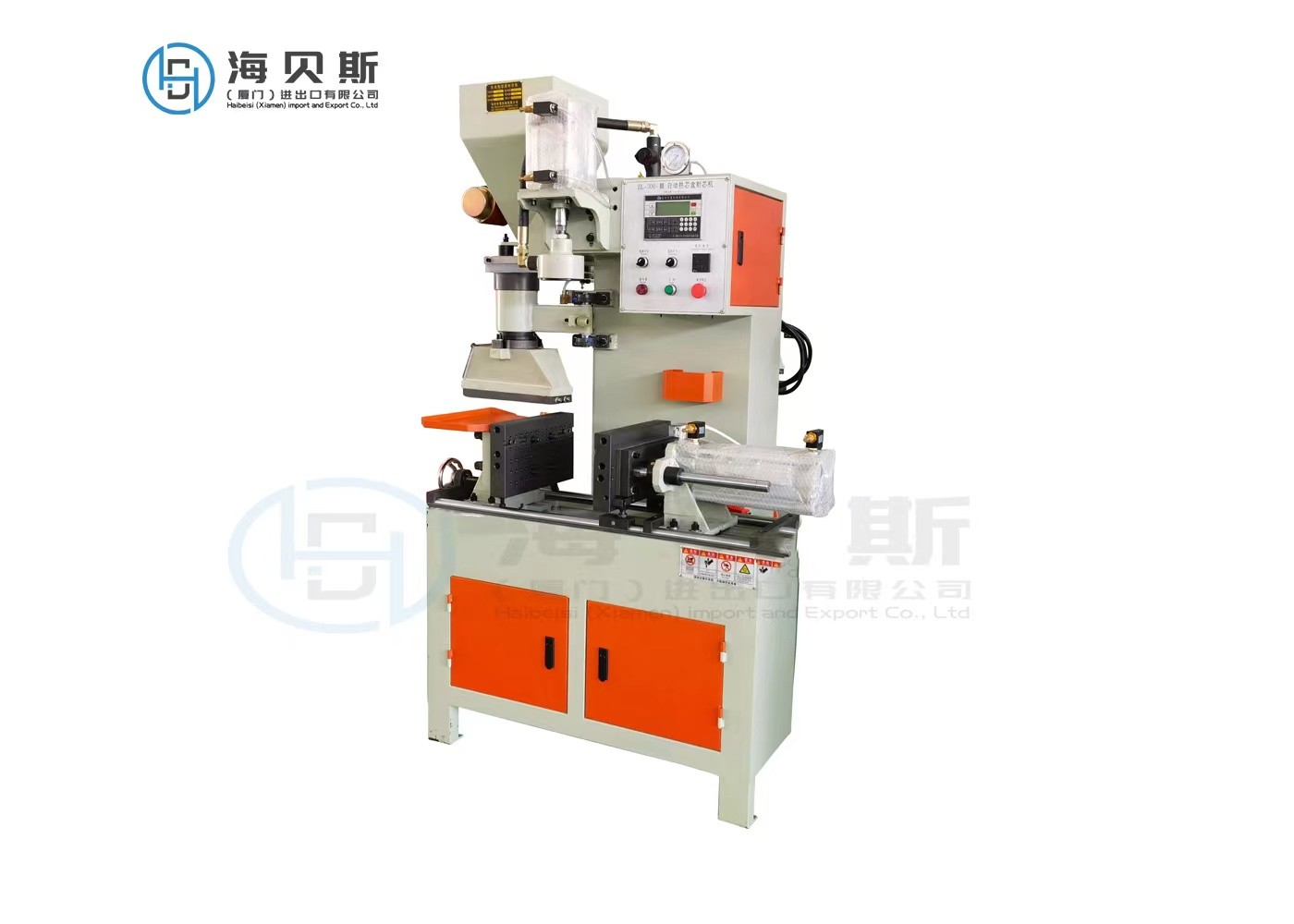

A vertical core shooting machine, also known as a vertical core shooter, is a type of foundry equipment used in metal casting processes. It is designed to produce sand cores, which are used as internal cavities in metal castings to create hollow sections or complex shapes.
The vertical core shooting machine consists of a vertical chamber or barrel, a shooting mechanism, and a sand feeding system. Here's a general overview of how it works:
Preparation: The core shooting machine is set up and prepared for operation. This includes ensuring an adequate supply of sand and preparing the core boxes or patterns that will be used to form the cores.
Sand filling: The machine is loaded with sand through the sand feeding system. The sand is typically a mixture of sand and a binder, which helps hold the sand together during the core formation process.

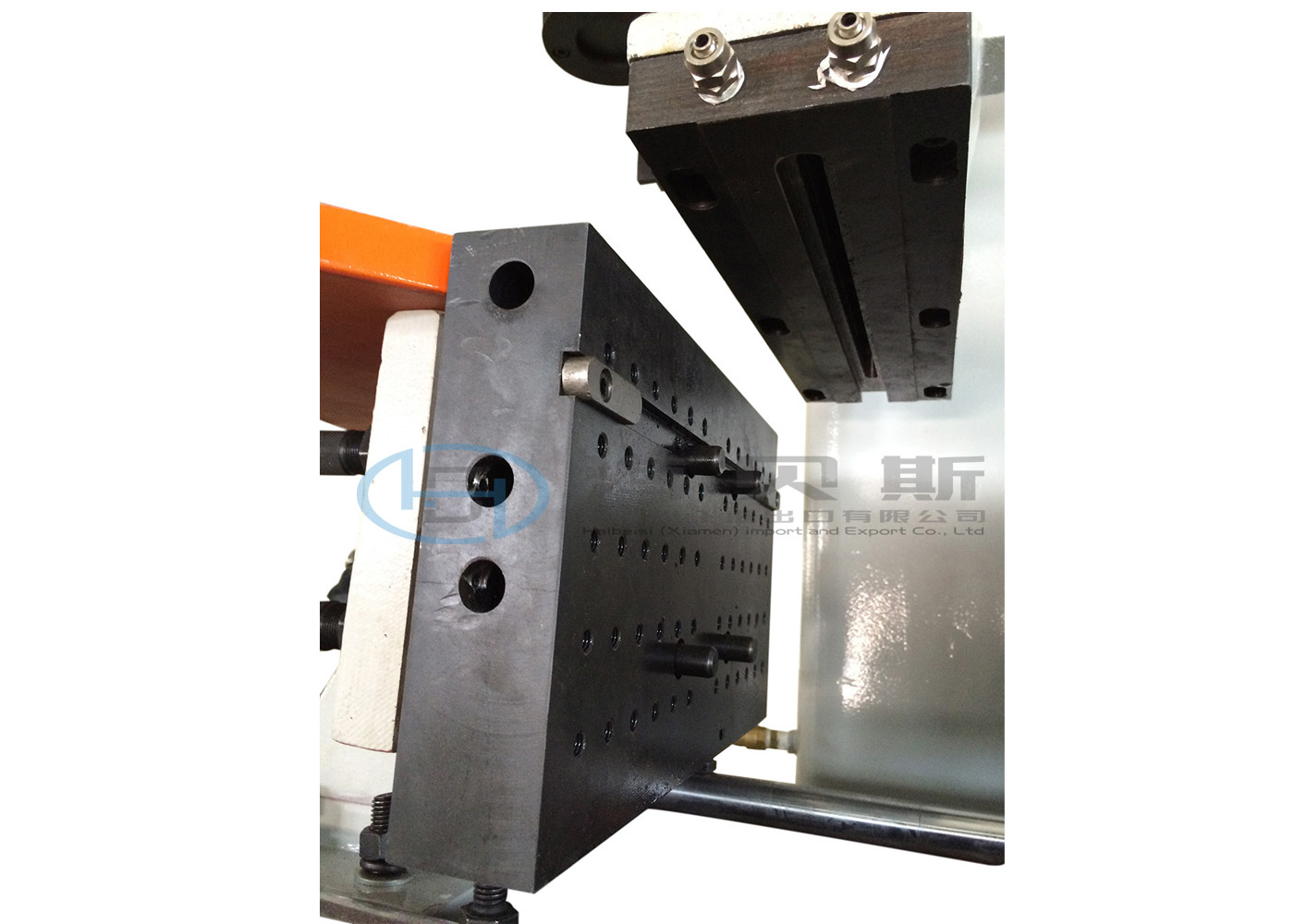

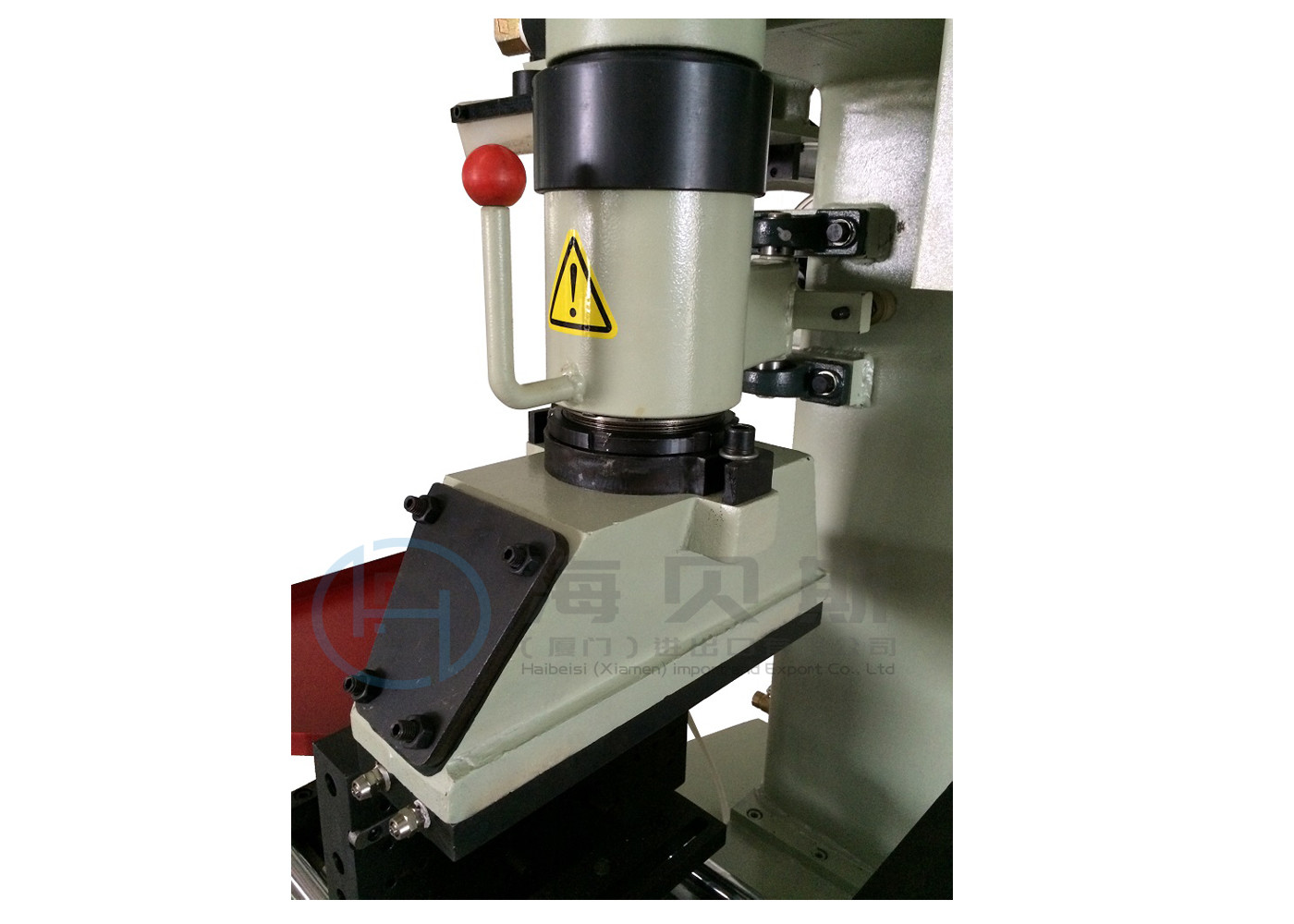

Shooting mechanism: The shooting mechanism in the vertical core shooting machine is responsible for introducing the sand mixture into the core box or pattern. It typically consists of a shooting head or nozzle that delivers the sand into the core box.
Shooting process: The core box or pattern is placed in a vertical position, and the shooting head is lowered into the box. The shooting head then shoots the sand mixture under pressure into the box, filling the desired cavity or shape. The pressure helps ensure that the sand is compacted properly and forms a solid core.

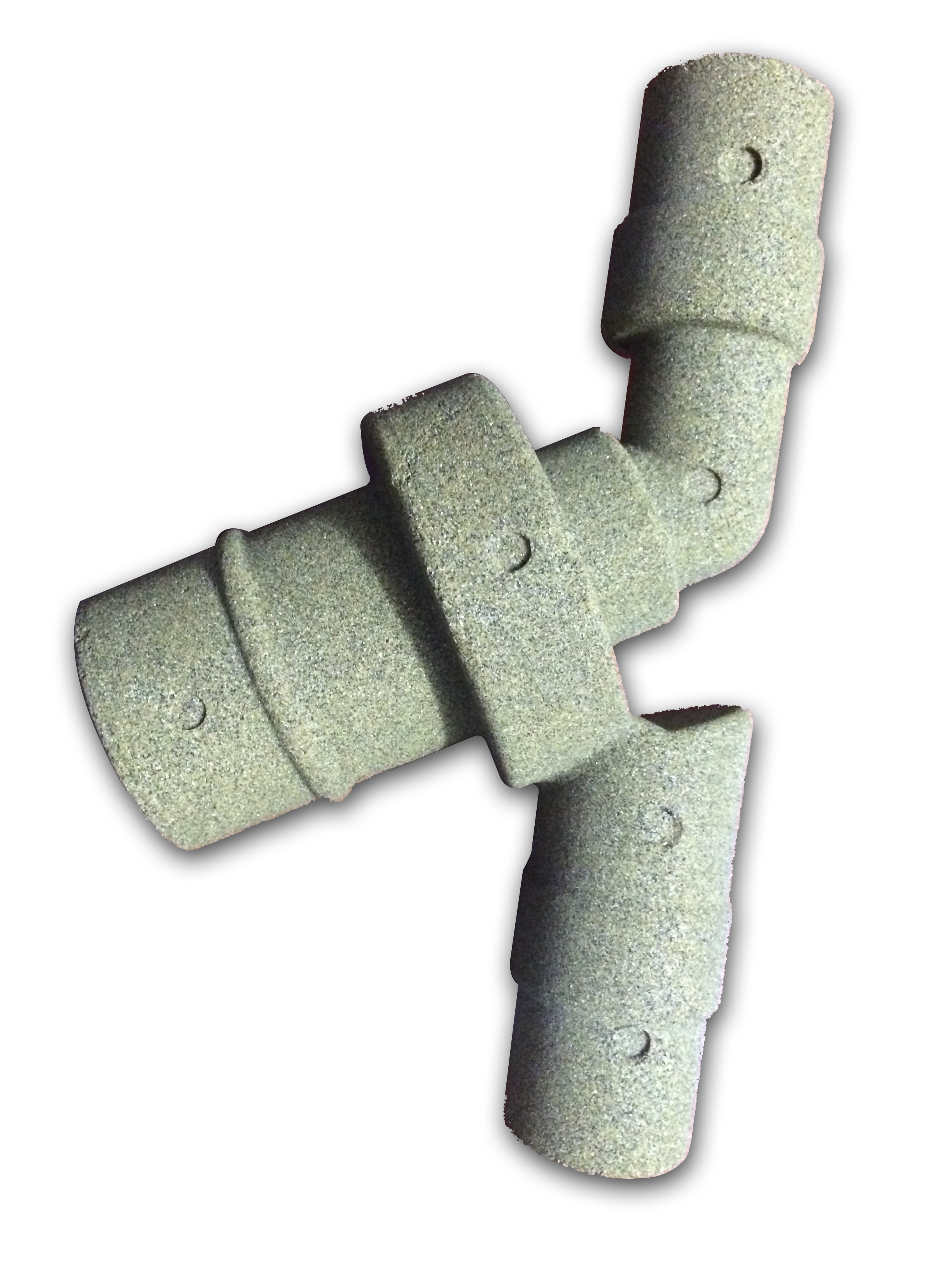

Core removal: Once the sand has been shot into the core box and solidified, the core box is opened, and the newly formed core is removed. The core can then be used in the metal casting process.
Packing and shipping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE SHOOTER MACHINE?
A:It depends on the size/shape of your products..etc.(Contact us for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
