| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 600B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-10000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20days |
| Payment Terms: | TT,L/C,DA,DP |
| Supply Ability: | 50Sets per month |
| Condition: | NEW | Operation Mode: | Automatic |
|---|---|---|---|
| Control System: | PLC | Warranty: | 1Year |
| Voltage: | 380V | Power Source: | Electricity |
| Material: | Cast Iron | ||
| Highlight: | Box Core Making Equipment,Heated Core Making Equipment,Double Head Core Making Equipment |
||

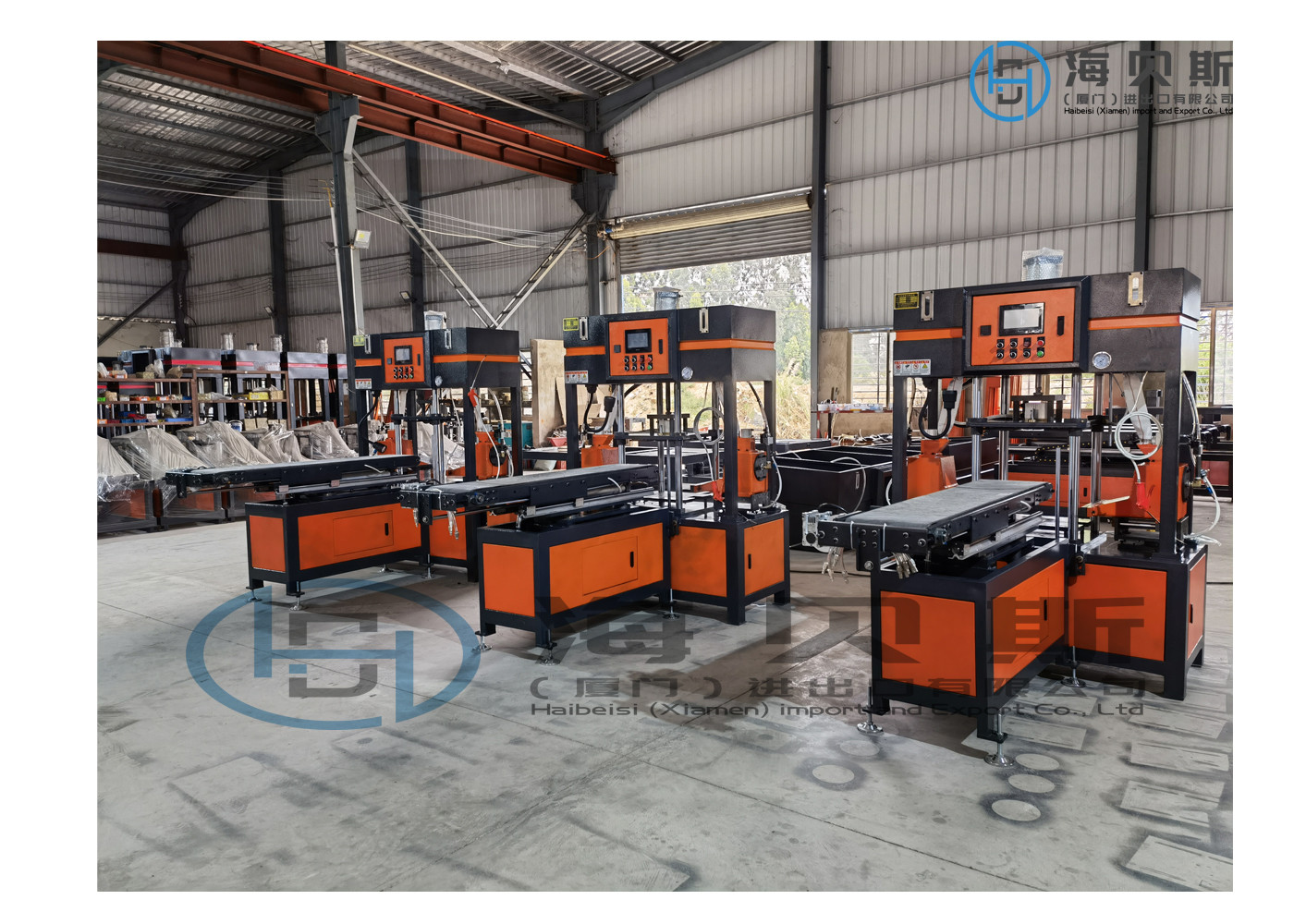

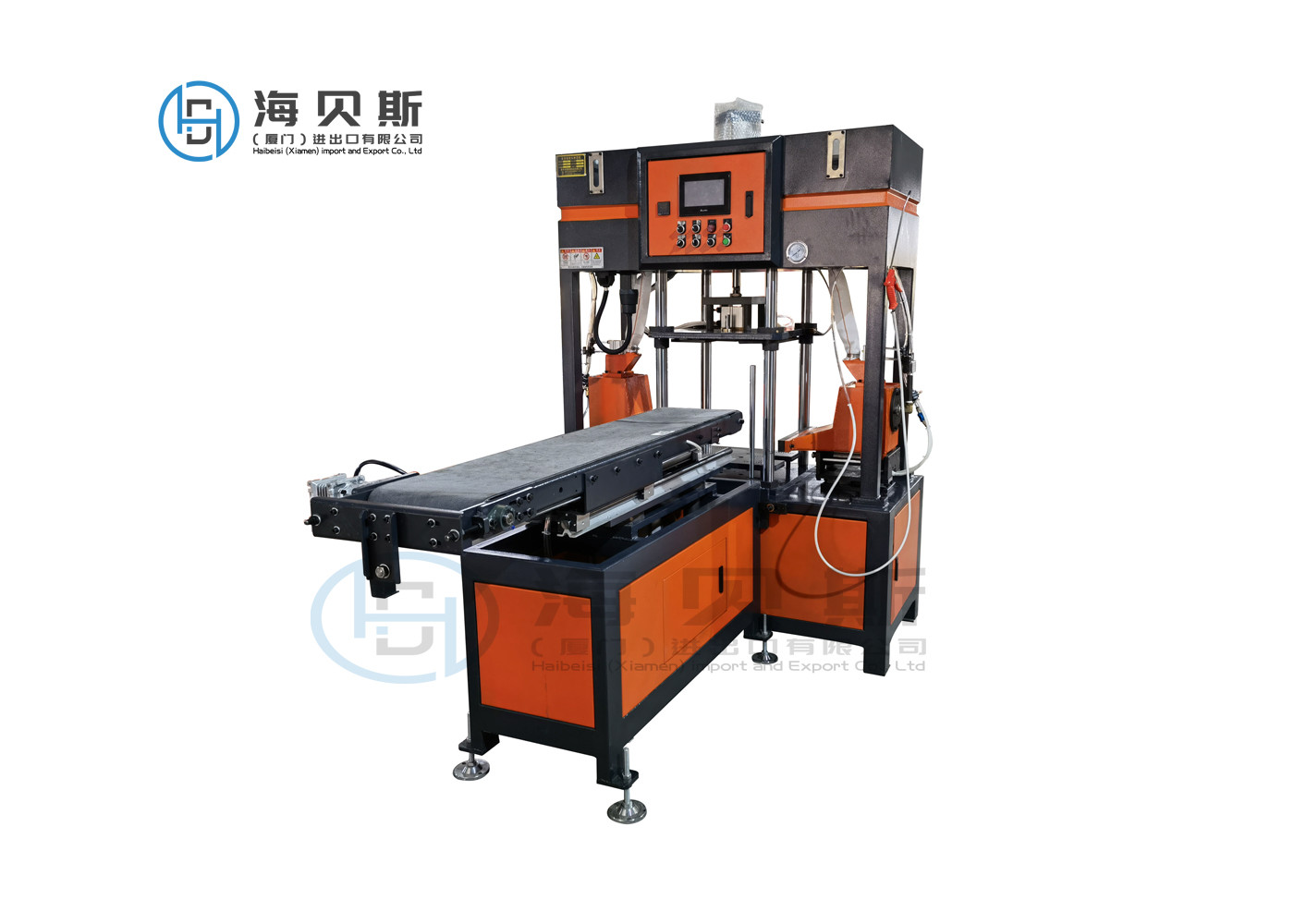

Cast Iron Sand Core Making Machine With 380v Electric Power Source For Water Pump Casting
1. Automatic Double-Head heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically
2. It is applicable to sand core with a qualitative properties less than 15kg in one side.
3. Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high quality sand core with a smooth surface and precise dimension is obtained.
4. The core shooting machine working procedure: Core box clamps----sand shooting head clamps----sand shooting----shooting.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
Our Sand Core Making Machine comes with a comprehensive technical support and service package. Our team of highly trained engineers and technicians can provide you with the best possible service in the industry. We offer on-site installation, troubleshooting, and maintenance services. We also provide online technical support and telephone support for any questions or concerns you may have. Our team is available 24/7, and we are always ready to help you.
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different model(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
