| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | GYT-35 |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD10000-50000 |
| Packaging Details: | Plywood packed with export standard |
| Delivery Time: | 10-15days |
| Payment Terms: | TT,L/C.D/A,D/P |
| Supply Ability: | 50Sets per month |
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Material: | Copper | Cooling Method: | Water Cooling |
| Processing Type: | Continuous Casting And Rolling | Power Source: | Electricity |
| Voltage: | 380V/50Hz | Name: | Copper Rod Making Machine |
| Highlight: | Electricity Powered Copper Rod Making Machine,ISO Copper Rod Making Machine |
||

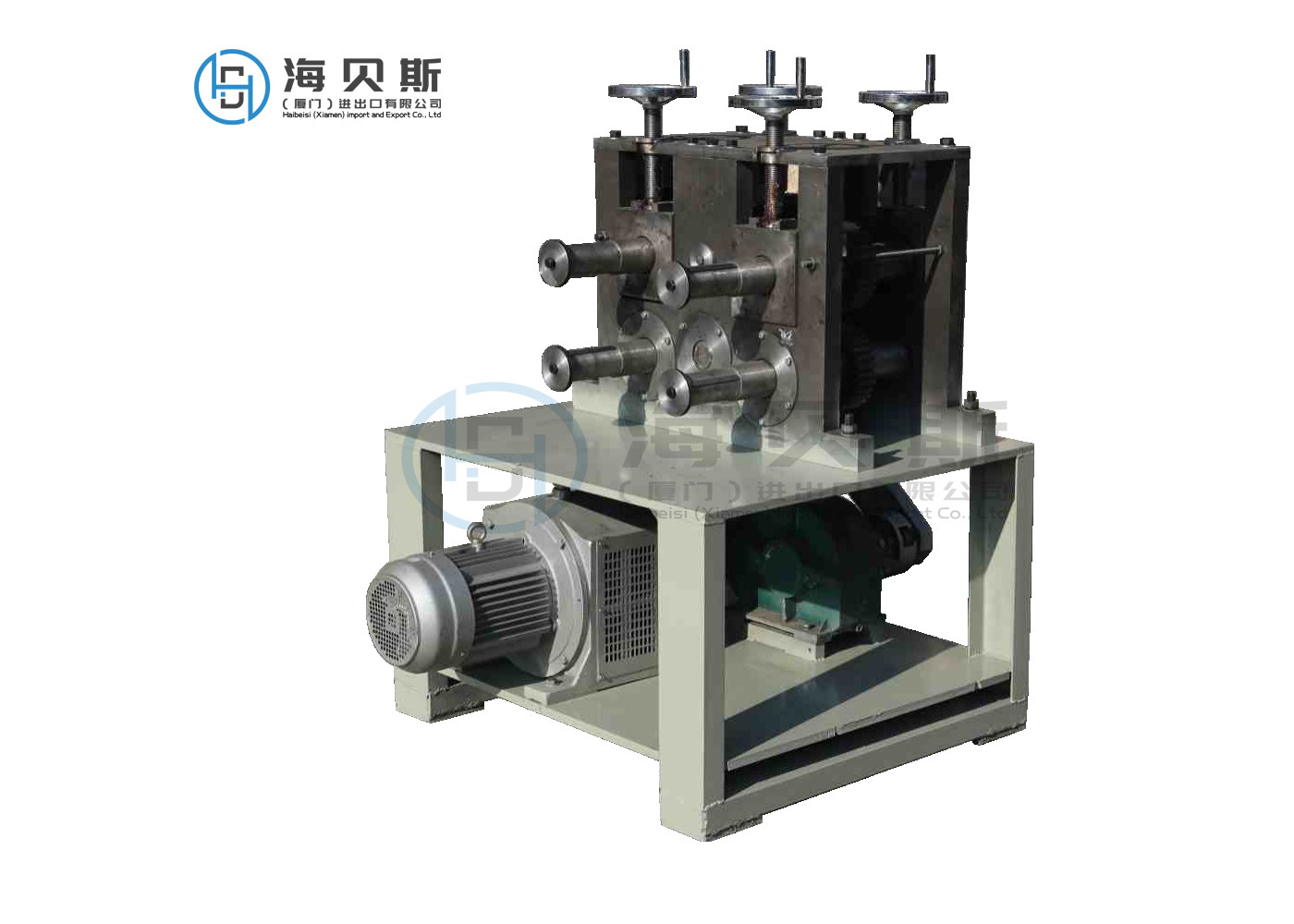

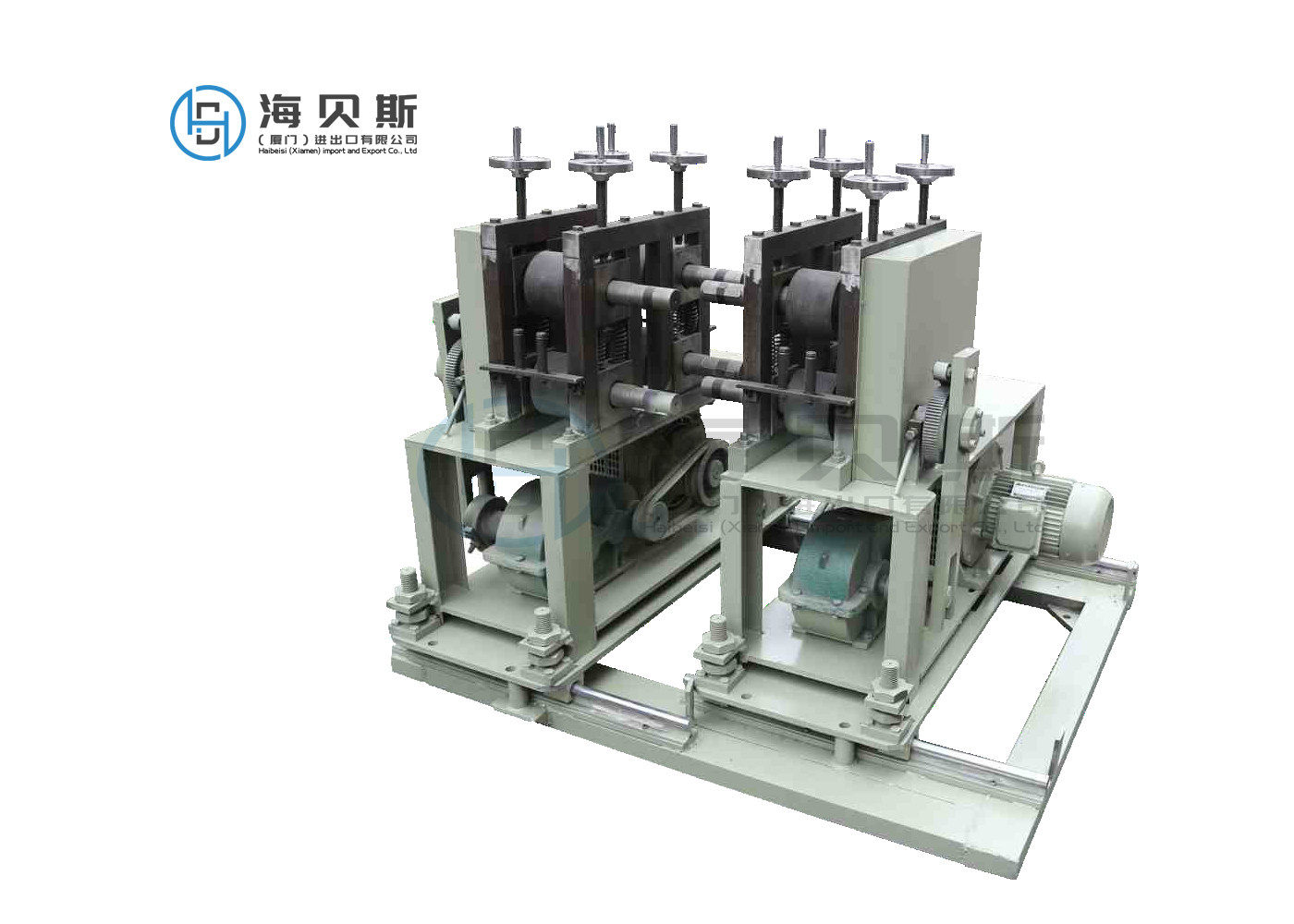

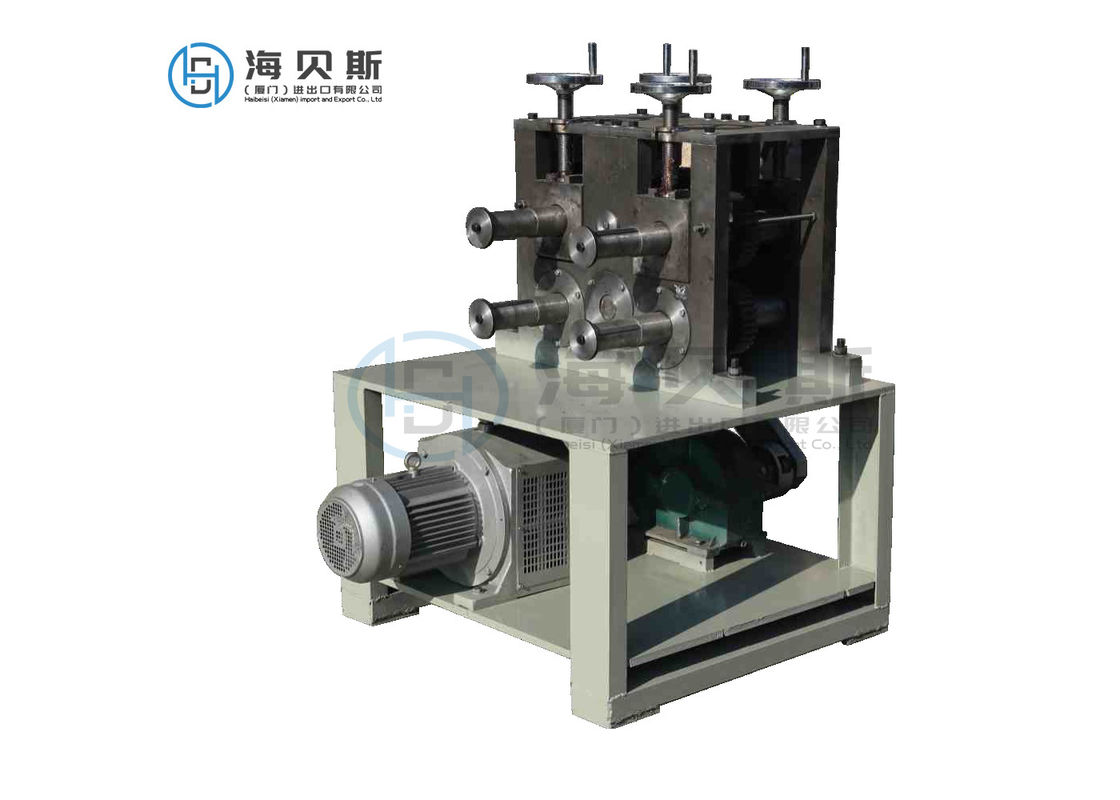

Electricity Powered Copper Rod Making Machine Brass Bar Casting Machine
Brass rod making machines are used to produce brass rods of various sizes and specifications. These machines are designed to melt brass scraps or raw brass material and then transform the molten brass into solid rods through a series of processes.

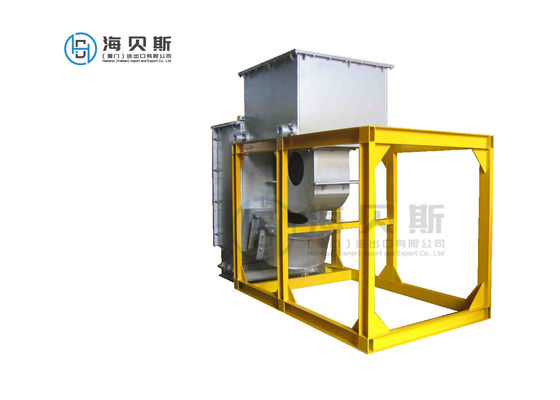

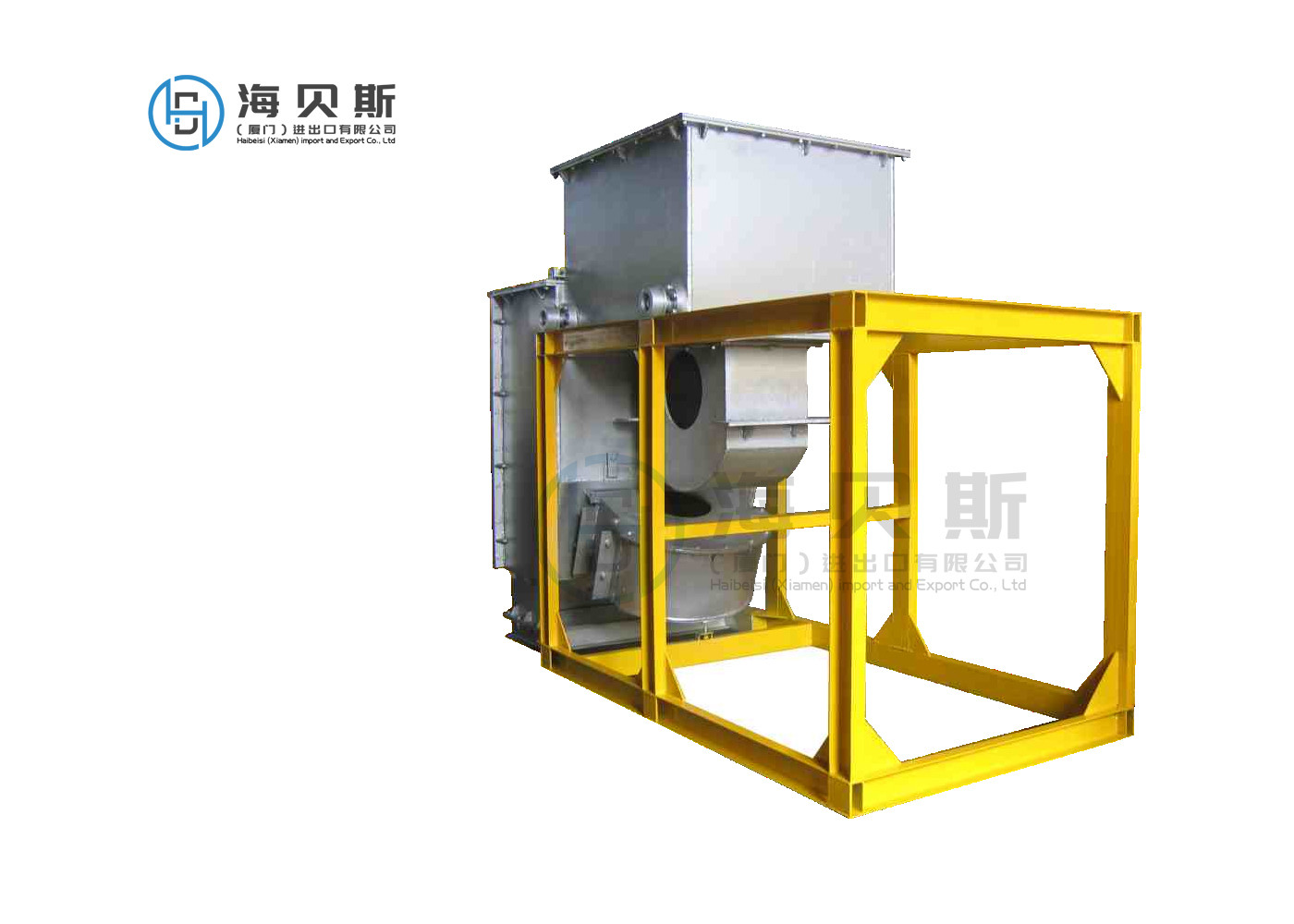

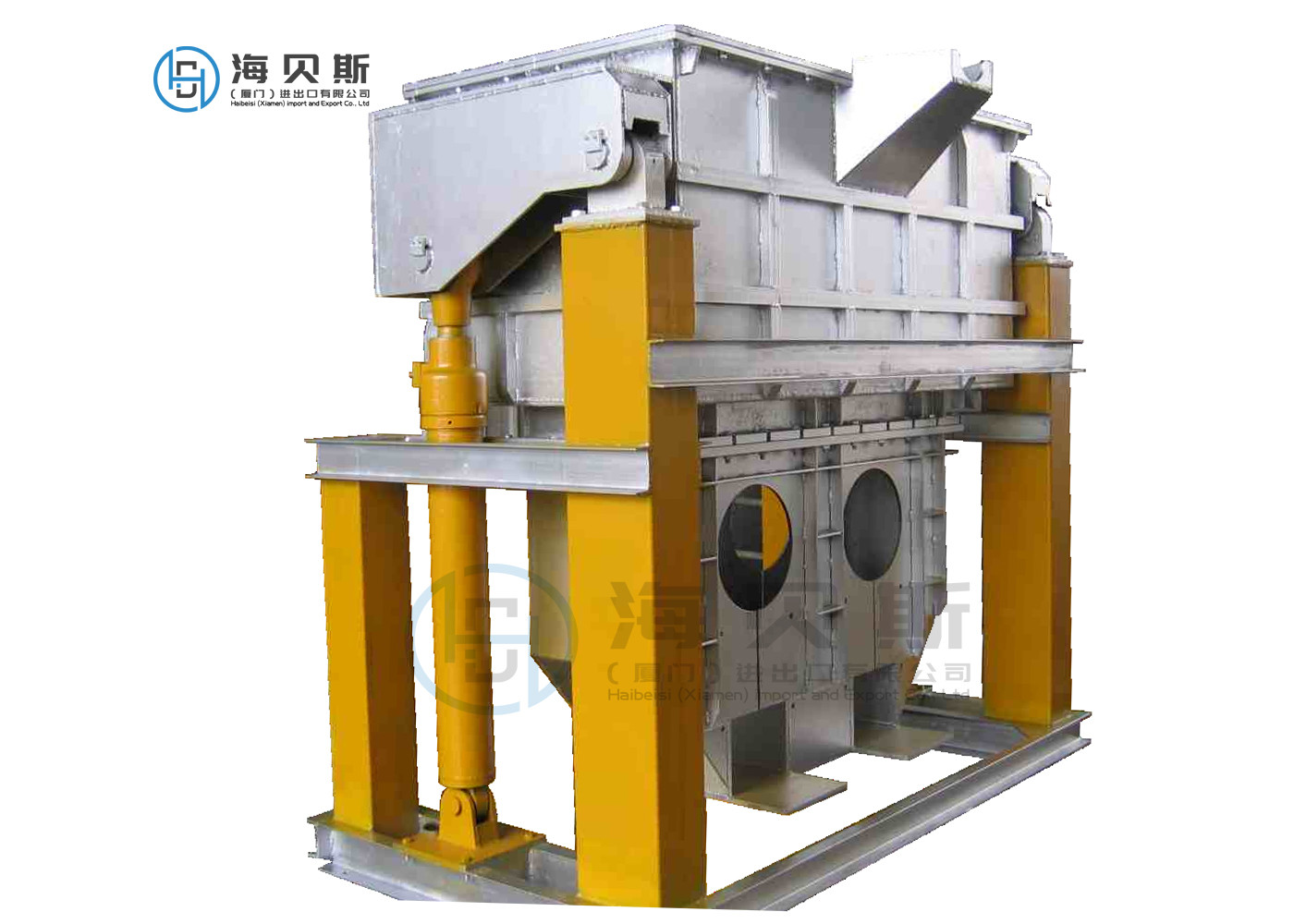

Melting: Brass scraps or raw brass material are melted in a furnace or other heating equipment. The temperature is carefully controlled to ensure the brass is properly melted.
Drawing: In the drawen process, the brass is forced through a die to shape it into a rod with the desired diameter and length. This process helps improve the mechanical properties and surface finish of the brass rod.
Cooling and Cutting:the brass rod is cooled using a water system.After cooled, the rod is cut into the desired lengths using a cutting machine.
Finishing: The cut brass rods may undergo additional processes such as straightening, peeling, or surface treatment to meet specific requirements.
| SL | SPECIFICATION | |
| 1 | Melting Rate | 500kg/h |
| 2 | Chamber Capacity | 2 |
| 3 | Temperature Rating | 1000-1100℃ |
| 4 | Total Rated Capacity Of Melting Furance | 3000kg |
| 5 | Total Rated Capacity Of Holding Furance | 40000kg |
| 6 | Voltage | 380V,50HZ |
| 7 | Cos After Compensation | 0.95-1 |
| 8 | Cooling Water Consumption | 10m³/h |
| 9 | Water Pressure | 0.3-0.4Mpa |
| 10 | Total Power | 250Kw |
We strive to provide the best technical support and service for all our Copper Rod Making Machine customers. Our knowledgeable staff will be able to answer any questions you may have regarding the operation of the machine, installation, troubleshooting, and maintenance. In addition, we provide regular maintenance services to ensure the machine is functioning correctly and safely. If you experience any issues with the machine, our technicians will be able to diagnose and repair the issue quickly and efficiently.
We provide free telephone and email support for all our Copper Rod Making Machine customers with any questions or concerns they may have. We also offer online tutorials and videos to help customers learn how to use the machine. We strive to provide a high level of customer service and technical support to ensure that customers are satisfied with their purchase.
Packing and Shipping
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE ROD MAKING MACHINE?
A:It depends on your daily/monthly production required.(Contact us for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 15-20days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
