| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 600B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-10000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20days |
| Payment Terms: | TT,L/C,DA,DP |
| Supply Ability: | 50Sets per month |
| Name: | Sand Core Making Machine | Voltage: | 380V |
|---|---|---|---|
| Power Source: | Electricity | Condition: | NEW |
| Operation Mode: | Automatic | Material: | Cast Iron |
| Control System: | PLC | Warranty: | 1 Year |
| Highlight: | Automatic Core Making Equipment,380V Core Making Equipment,Cast Iron Sand Making Machinery |
||

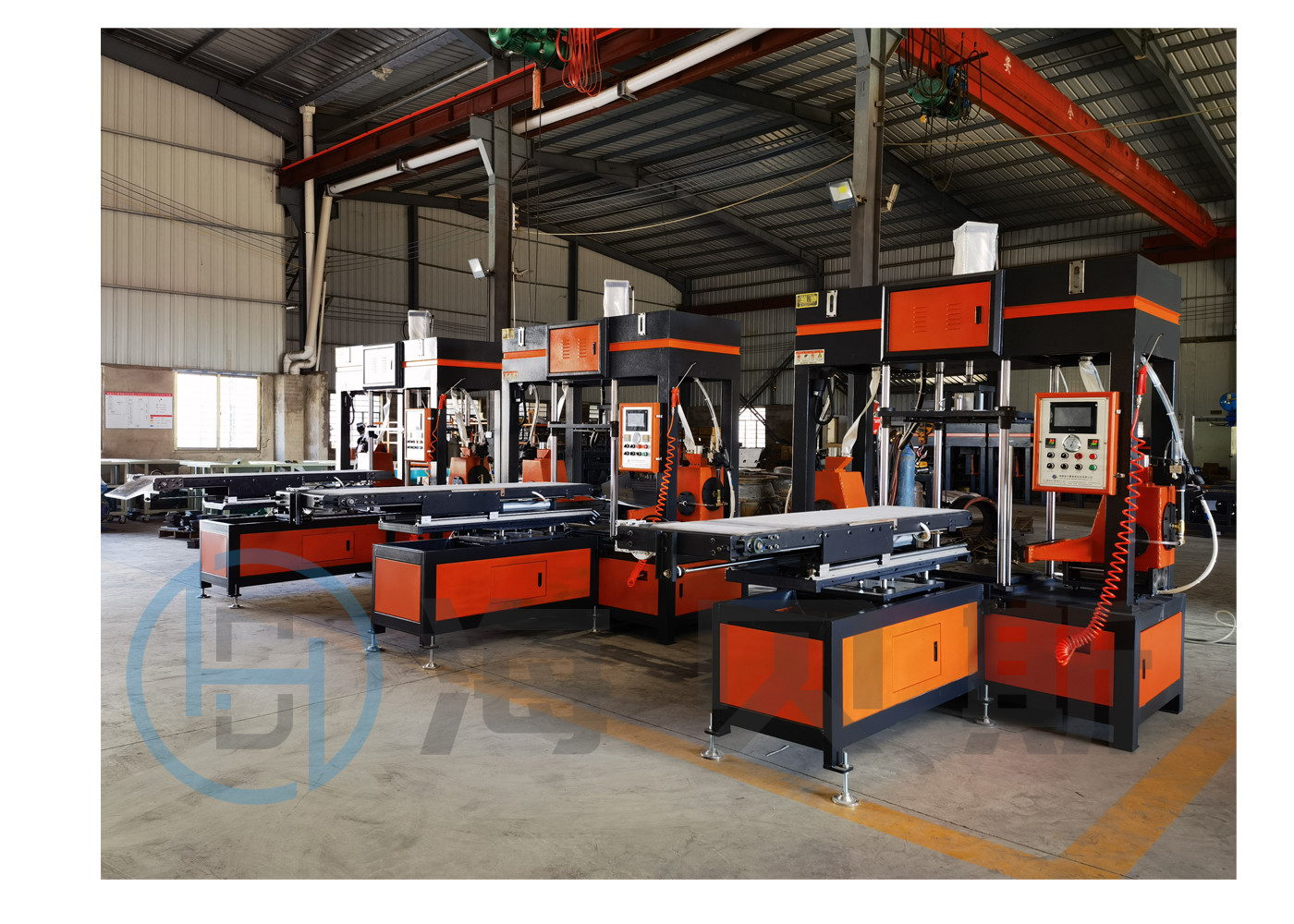

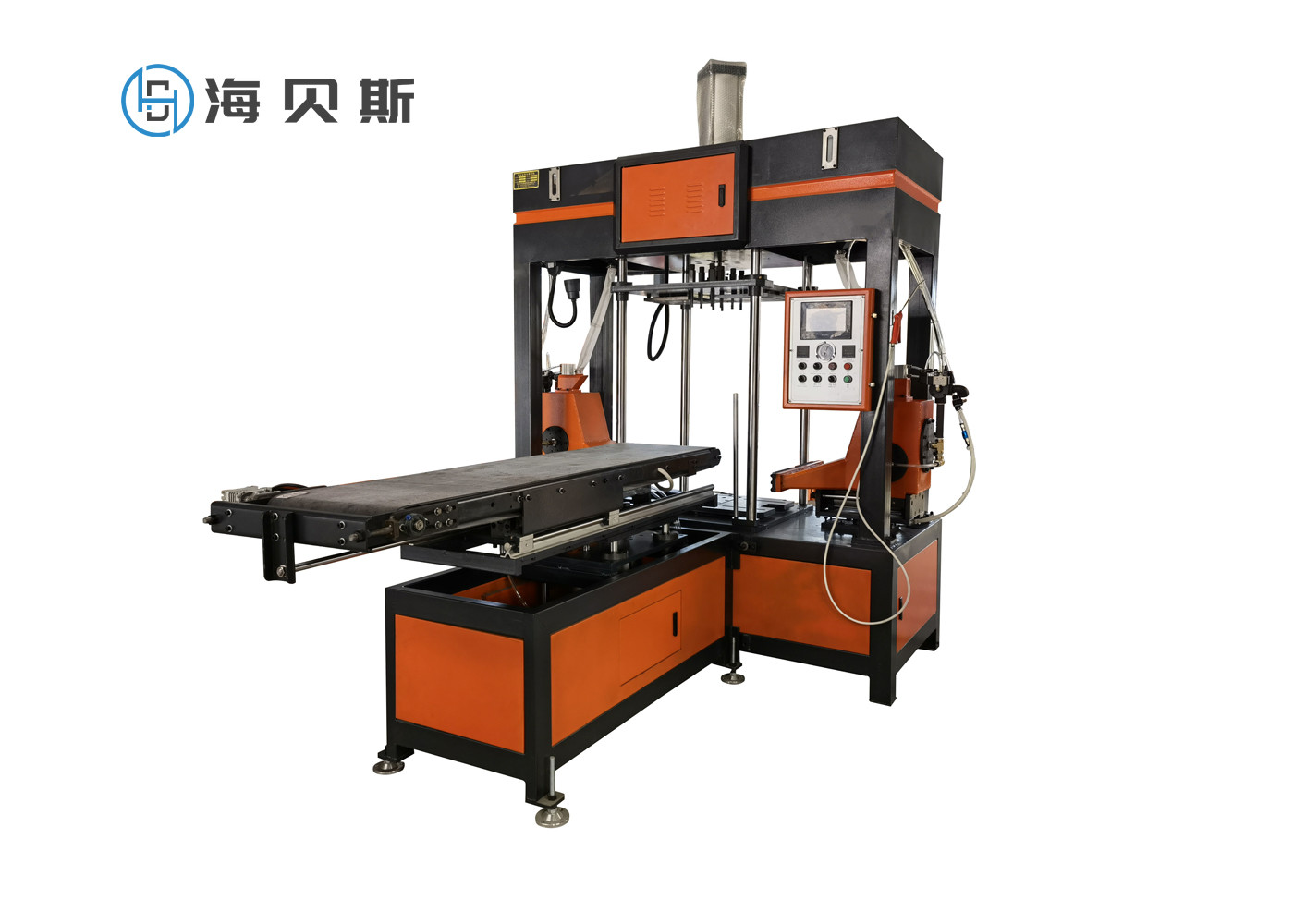

HBS 600B Sand Core Making Machine is an advanced core manufacturing machine designed to produce quality cores with high efficiency and accuracy. It is an automatic core producing machine with a voltage of 380V and a power source of electricity. It is constructed with cast iron for superior durability and strength. This core making apparatus is ideal for core producing applications that require high accuracy and reliability. It can quickly and accurately produce cores in various sizes and shapes. It is suitable for any core manufacturing industry, offering high-speed and accurate core production. This machine is perfect for core production needs, simplifying the core production process with its efficient operation mode and excellent performance.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require di
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
