| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 600B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-10000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20days |
| Payment Terms: | TT,L/C,DA,DP |
| Supply Ability: | 50Sets per month |
| Name: | Sand Casting Machine | Voltage: | 380V |
|---|---|---|---|
| Operation Mode: | Automatic | Warranty: | 1 Year |
| Control System: | PLC | Power Source: | Electricity |
| Condition: | NEW | Material: | Cast Iron |
| Highlight: | Electricity Powered Sand Casting Machine,Automatic Sand Casting Machine |
||
Electricity-Powered Automatic Sand Casting Machine For Efficiency

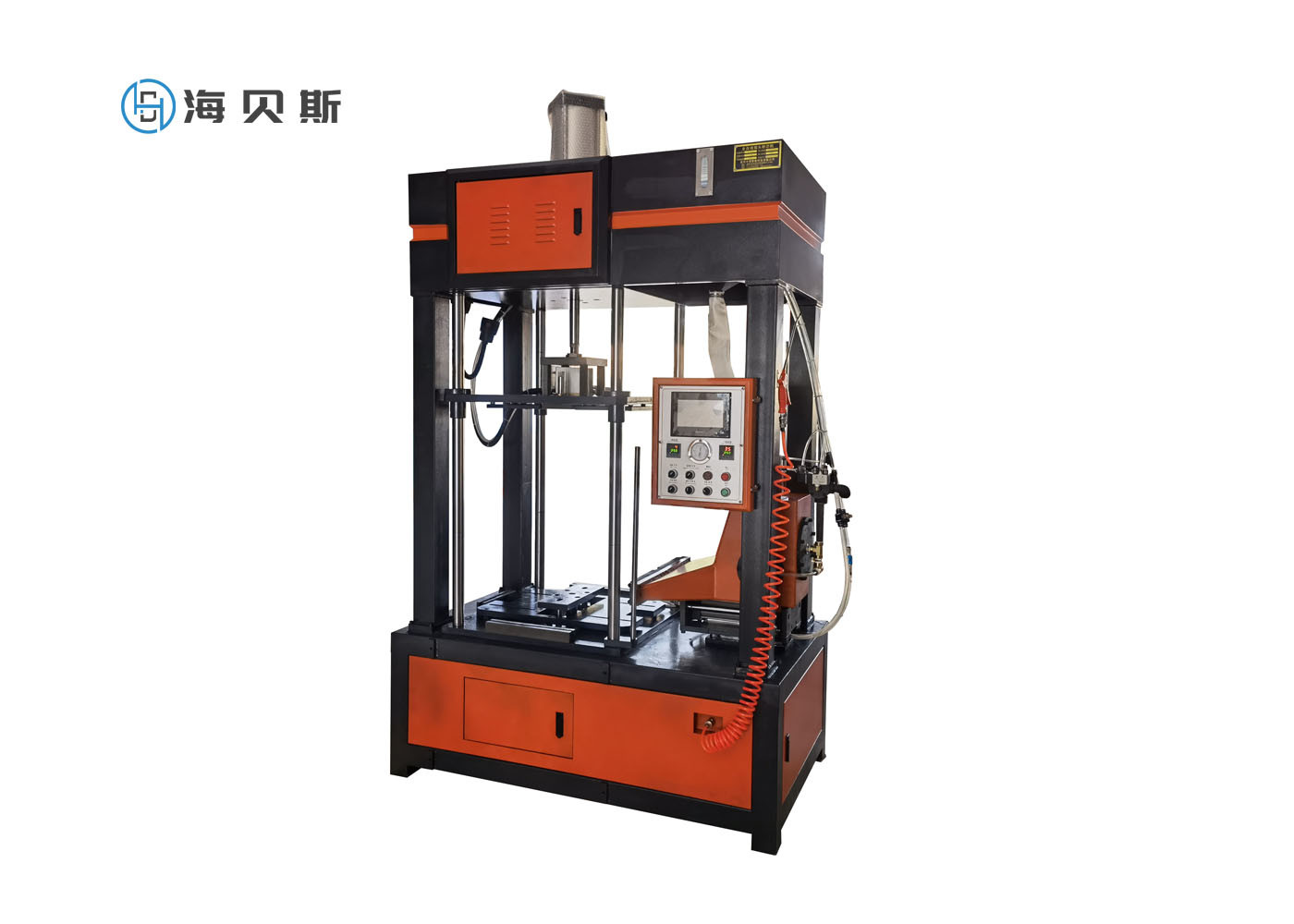

HBS 600B Sand Core Making Machine is an advanced moulding equipment designed for producing sand cores with high precision and efficiency. It is made of high quality cast iron material and powered by electricity with a voltage of 380V. It adopts a PLC control system to ensure its stable and reliable operation. It is highly accurate and reliable for core forming and moulding, and can make the sand core with precise size and shape. And it is easy to operate and maintain. This Sand Core Making Machine is also equipped with a 1-year warranty. It is an ideal choice for core forming and sand moulding in the industries such as automotive, machinery, and metallurgy.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
We provide technical support and service for our Sand Core Making Machine. Our service includes:
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different model(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
