| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 600B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-10000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20days |
| Payment Terms: | TT,L/C,DA,DP |
| Supply Ability: | 50Sets per month |
| Control System: | PLC | Voltage: | 380V |
|---|---|---|---|
| Condition: | NEW | Operation Mode: | Automatic |
| Material: | Cast Iron | Warranty: | 1Year |
| Power Source: | Electricity | ||
| Highlight: | Double Head Hot Box Core Shooter,Hot Box Core Shooter Machine |
||

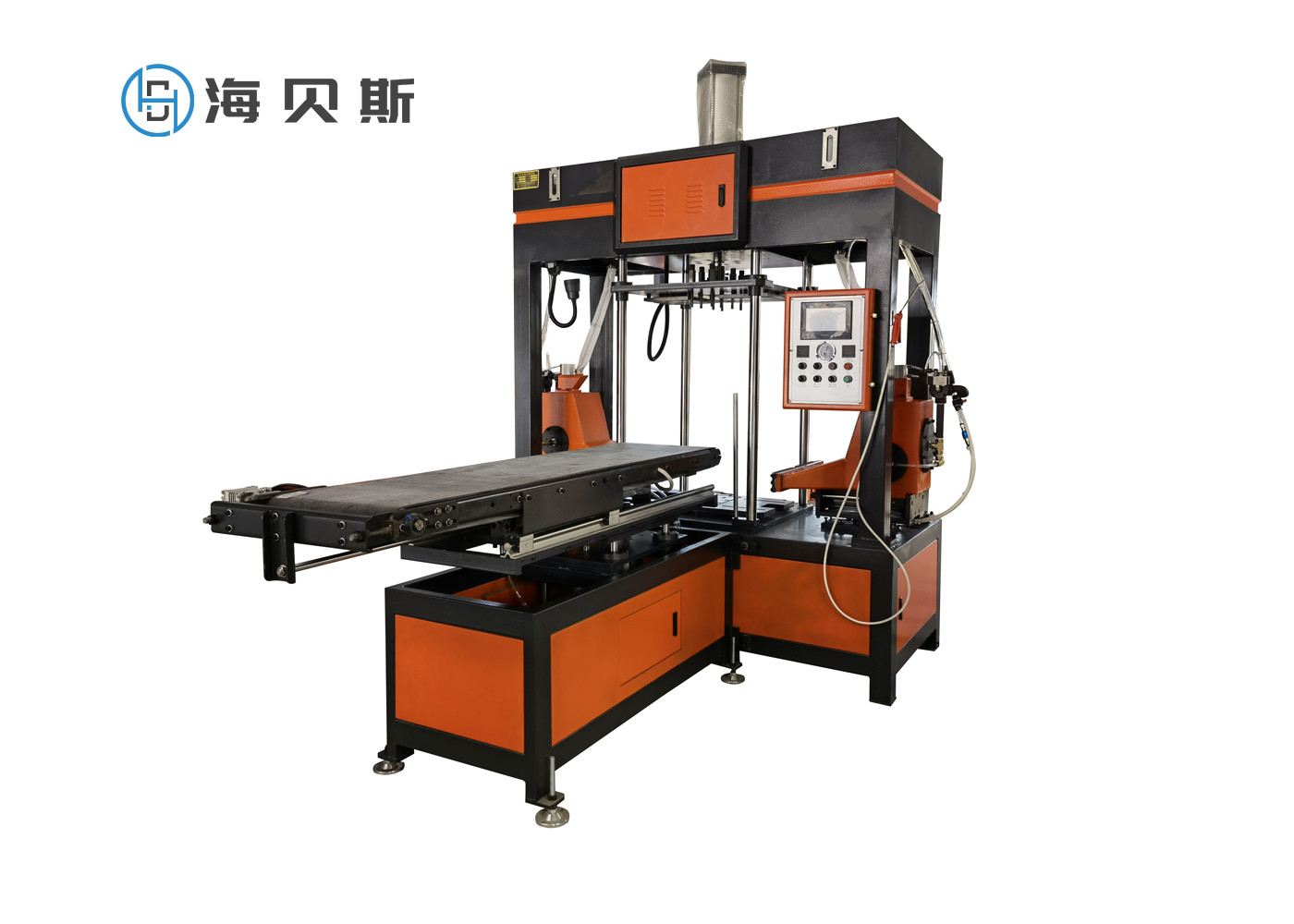

Sand Core Hot Box Shooting Machine With Double Head For Fire Hydrant And Car Spare Parts
1. Automatic Double-Head heated core box shooter is a heated core box core-making equipment with a four-column operable structure which can be operated manually or automatically
2. It is applicable to sand core with a qualitative properties less than 15kg in one side.
3. Its working principle is to shoot the dry resin bonded sand into a heated core-box. After being rapidly hardened to a certain thickness, high quality sand core with a smooth surface and precise dimension is obtained.
4. The core shooting machine working procedure: Core box clamps----sand shooting head clamps----sand shooting----shooting.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
Our technical support and services for Sand Core Making Machine are designed to ensure that your machine is operating at peak performance. We provide:
We also provide technical support through our online customer service portal, as well as phone and email support.
