| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 600B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-10000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20days |
| Payment Terms: | TT,L/C,DA,DP |
| Supply Ability: | 50Sets per month |
| Operation Mode: | Automatic | Voltage: | 380V |
|---|---|---|---|
| Material: | Cast Iron | Warranty: | 1Year |
| Power Source: | Electricity | Condition: | NEW |
| Control System: | PLC | ||
| Highlight: | Powerful Sand Core Making Machine,Reliable Sand Core Making Machine |
||

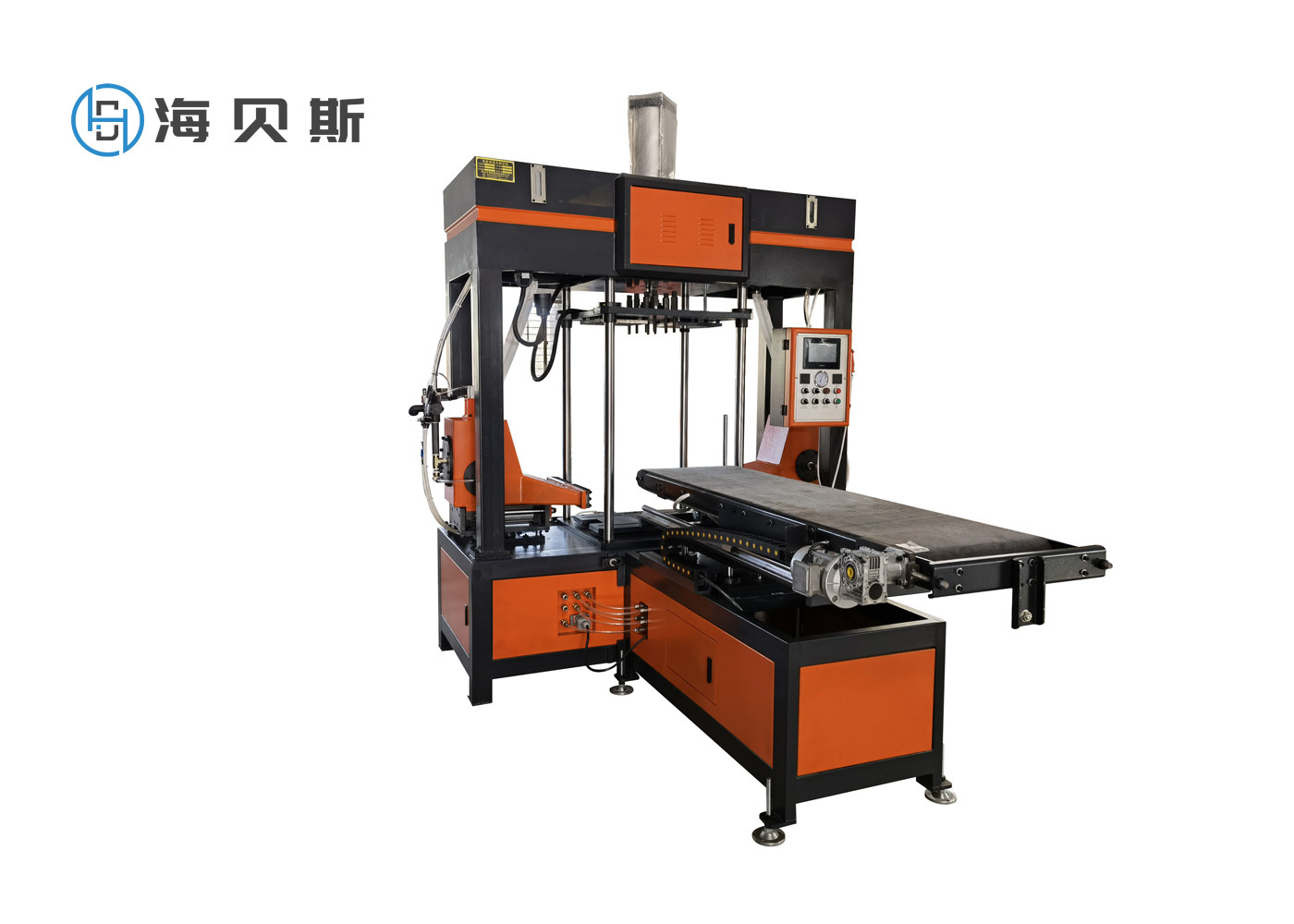

Plc Control System Sand Molding Machine For Ductile Cast Iron Casting
HBS 600B Sand Core Making Machine is a powerful and reliable apparatus for sand molding and casting. Made of high-quality cast iron, it is designed to provide optimal performance even in the most demanding working environments. The machine is equipped with advanced automatic operation mode and 380V voltage, ensuring a steady and efficient operation. Furthermore, the Sand Core Making Machine is backed up with a 1-year warranty, providing users with a reliable and secure power source. Sand casting and molding will never be the same with this powerful Sand Molding Machine, a professional-grade core making apparatus.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
Our Sand Core Making Machine is supported by a comprehensive technical support and service. This includes:
