| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 450B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD10000-30000 |
| Packaging Details: | Plywood packed with export standard |
| Delivery Time: | 15-20Days after deposit |
| Payment Terms: | TT,L/C,D/A,D/P |
| Supply Ability: | 50Sets per month |
| Name: | Gravity Die Casting Machine | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | Power: | 5.5kw |
| Casting Material: | Brass/Copper | Power Supply: | 380V/50Hz |
| Total Power: | 5.5KW | ||
| Highlight: | Copper Alloy Gravity Die Casting Machine,Gravity Die Casting Machine PLC Control,Gravity Casting Machine 5.5kw |
||

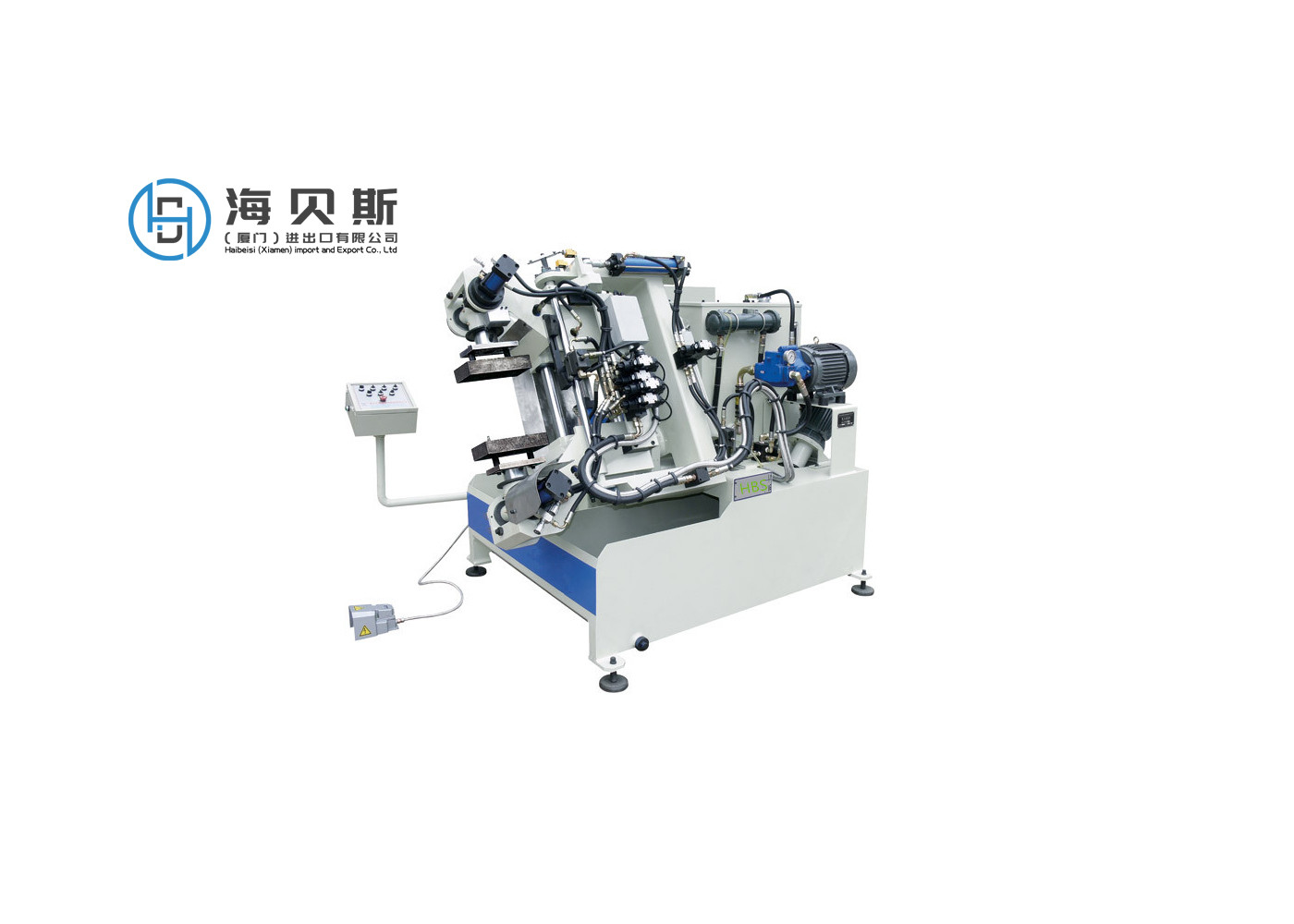

Manufacture Brass/Copper Alloy Gravity Die Casting Machine For Water Meter

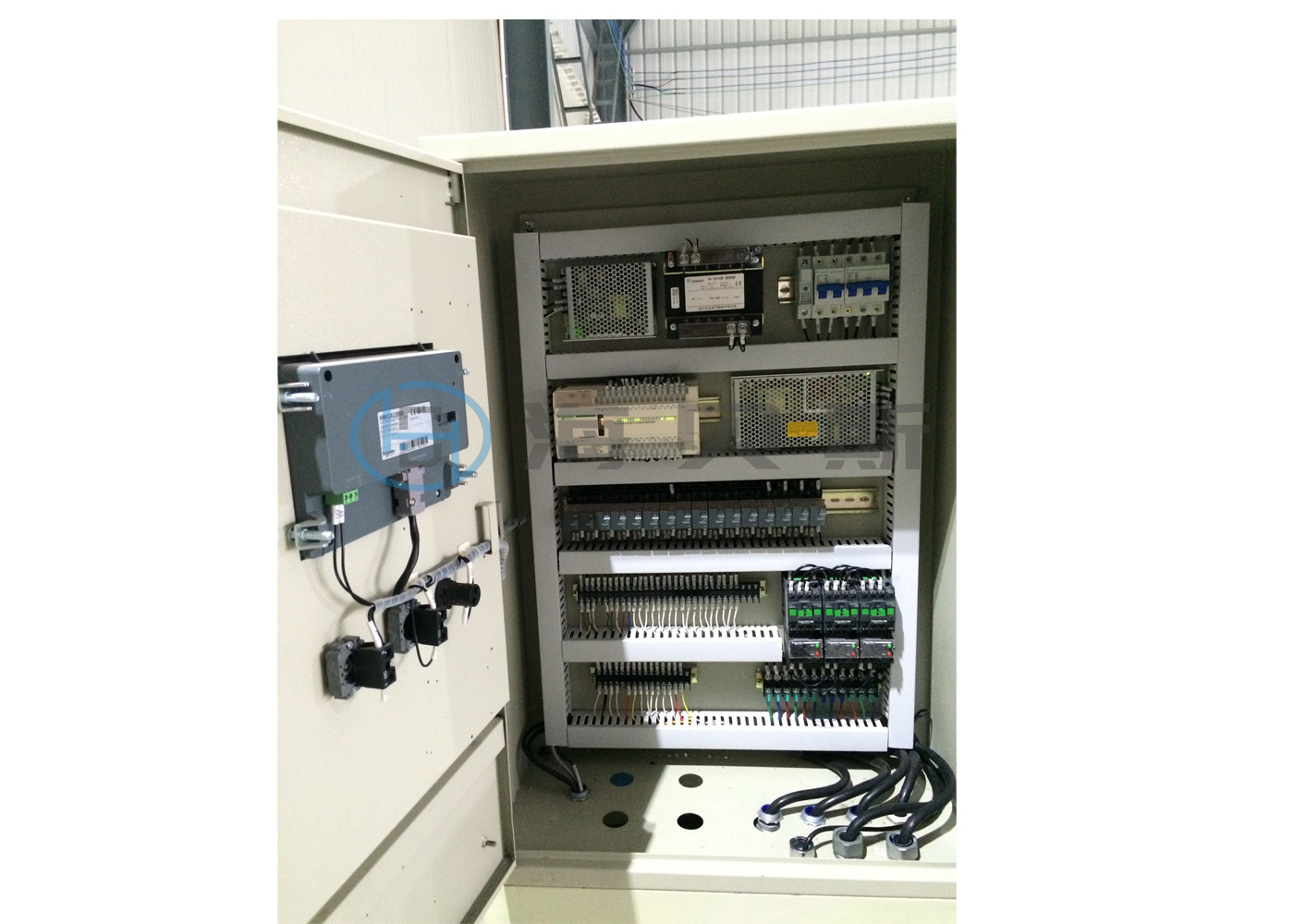

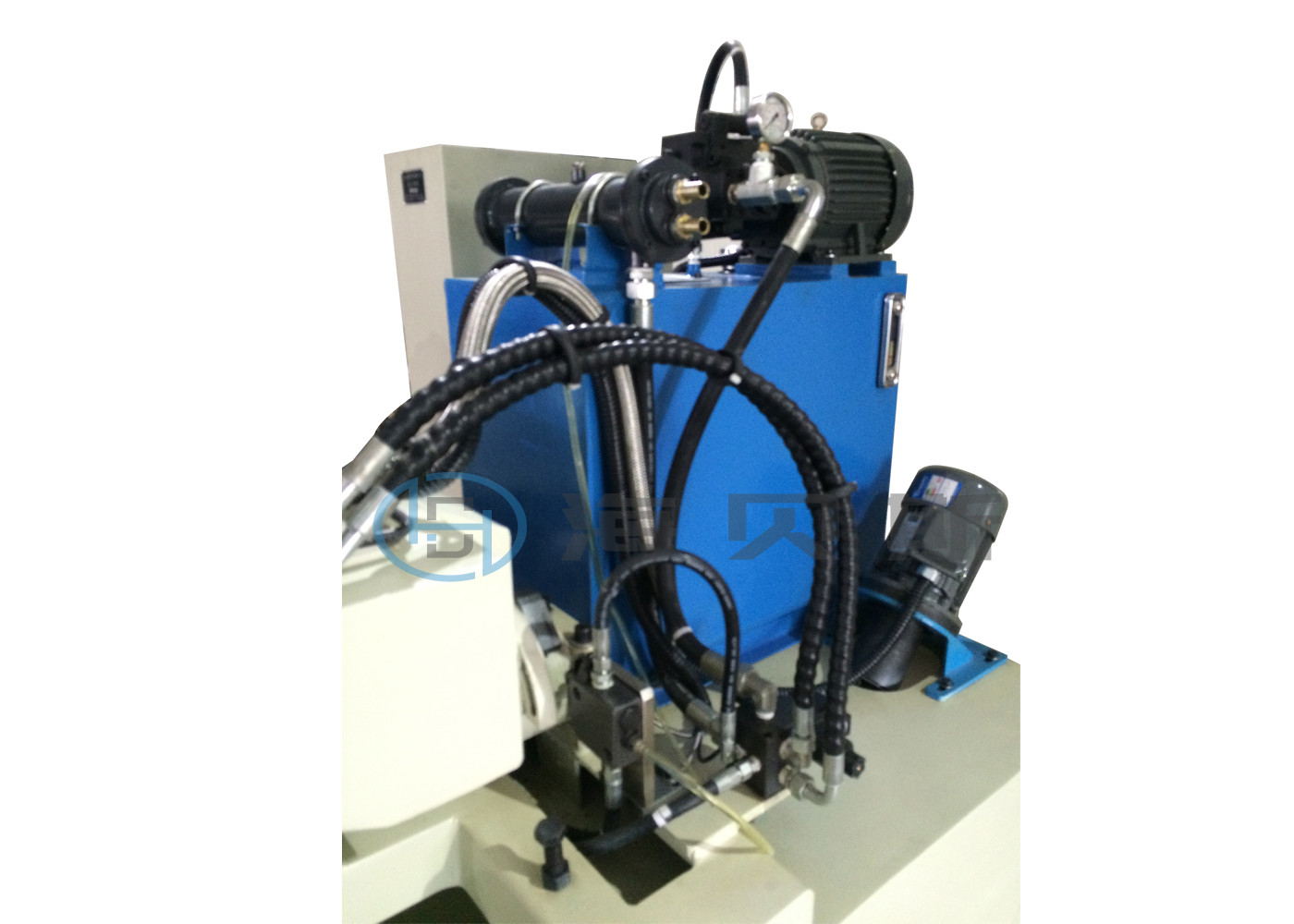

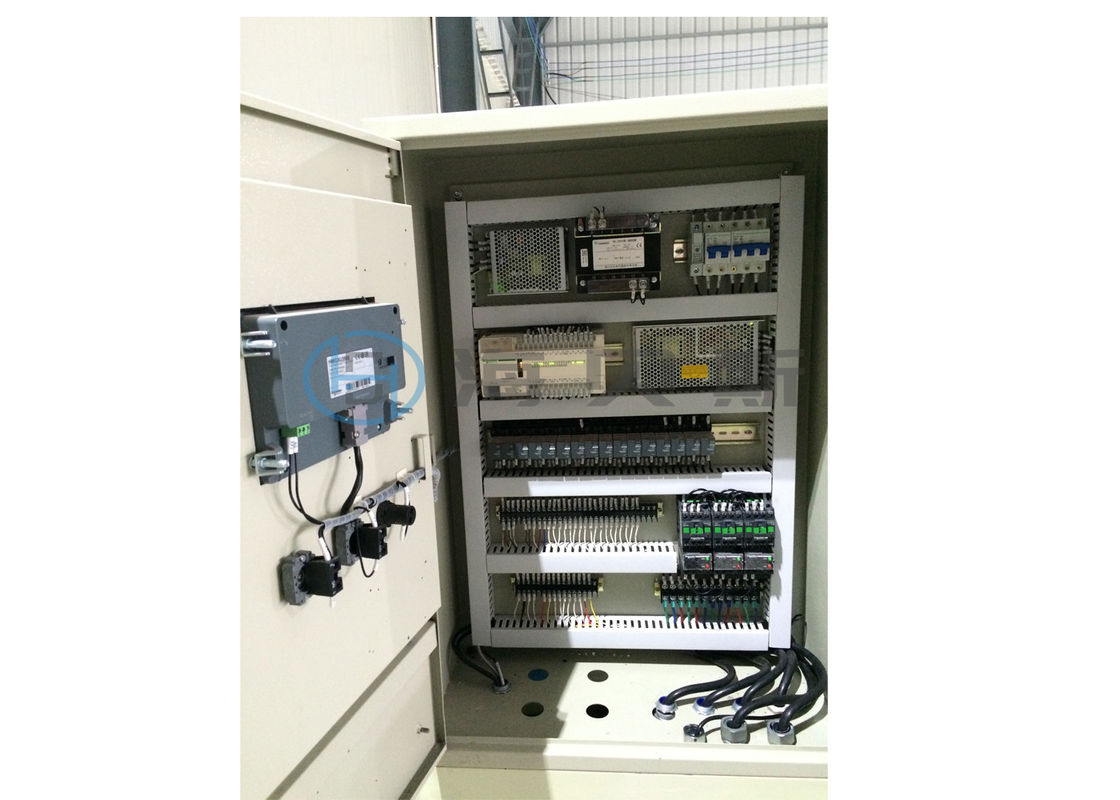

1. Circuits are all controlled by PLC,data setting adopts touch screen ,electrical components are imported from Japan and hydraulic components are as well imported from outside.
2. For gravity model casting with brass and ferroalloy.
3. Front casting,lateral casting and secondary casting are optional.
4. Individual cooling time of model is adjustable.
5. The dismantling ,assembly and cleaning of model are convenient.
6. Two functions of manual and automatic circulation are available.Totalizing counter and preset counter are arranged to record the piece number of on duty production.
| SL | SPECIFICATION | |
| 1 | Max Mold Size | φ450mm |
| 2 | Max Die Weight | 130kg |
| 3 | Max Merging Distance | ≤250mm |
| 4 | Oil Pressure | 40-60kpa |
| 5 | Side Pouring Angle | 0°-90° |
| 6 | Positive Pouring Angle | 0°-110° |
| 7 | Power | 5.5kw |
| 8 | Net Weight | 1800kg |
| 9 | Dimension(L*W*H) | 2250*2160*1560(mm) |
Gravity Die Casting Machine technical support and service includes:
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE GRAVITY DIE CASTING MACHINE?
A:It depends on your size of products.(Contact us for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 15-20days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
