| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Name: | Sand Core Shooting Machine | Type: | Automatic |
|---|---|---|---|
| Casting Method: | Hot Box | Power: | 380V/50Hz |
| Control System: | PLC | Air Consumption: | 0.5m³/min |
| Weight: | 520KG | Air Pressure: | 0.5-0.8MPa |
| Core Box Size: | 340*450*200mm | ||
| Highlight: | Sand Core Shooting Machine 8kw,0.8MPa Sand Core Shooting Machine |
||
PLC Control System Sand Core Casting Device For Increased Productivity

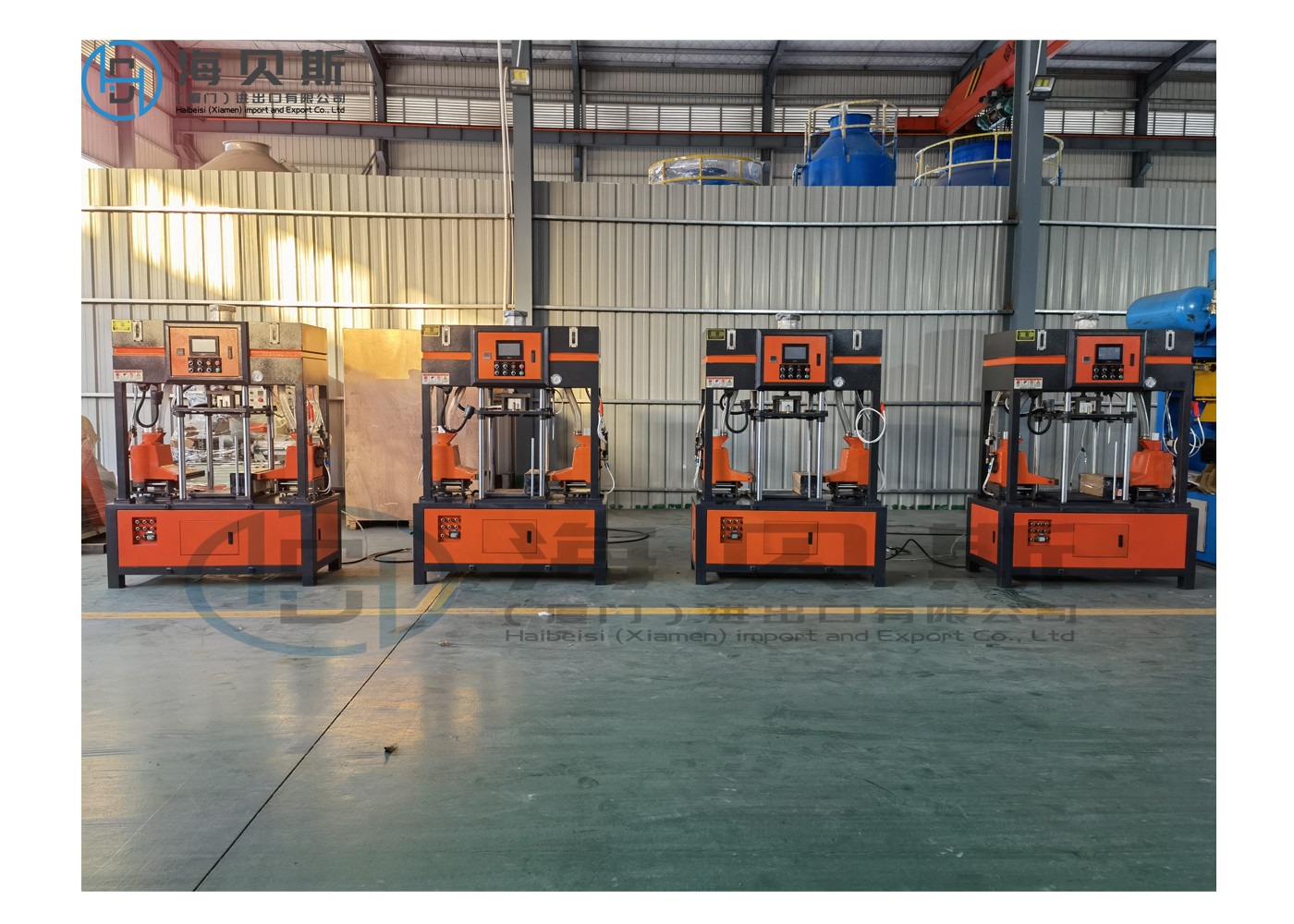

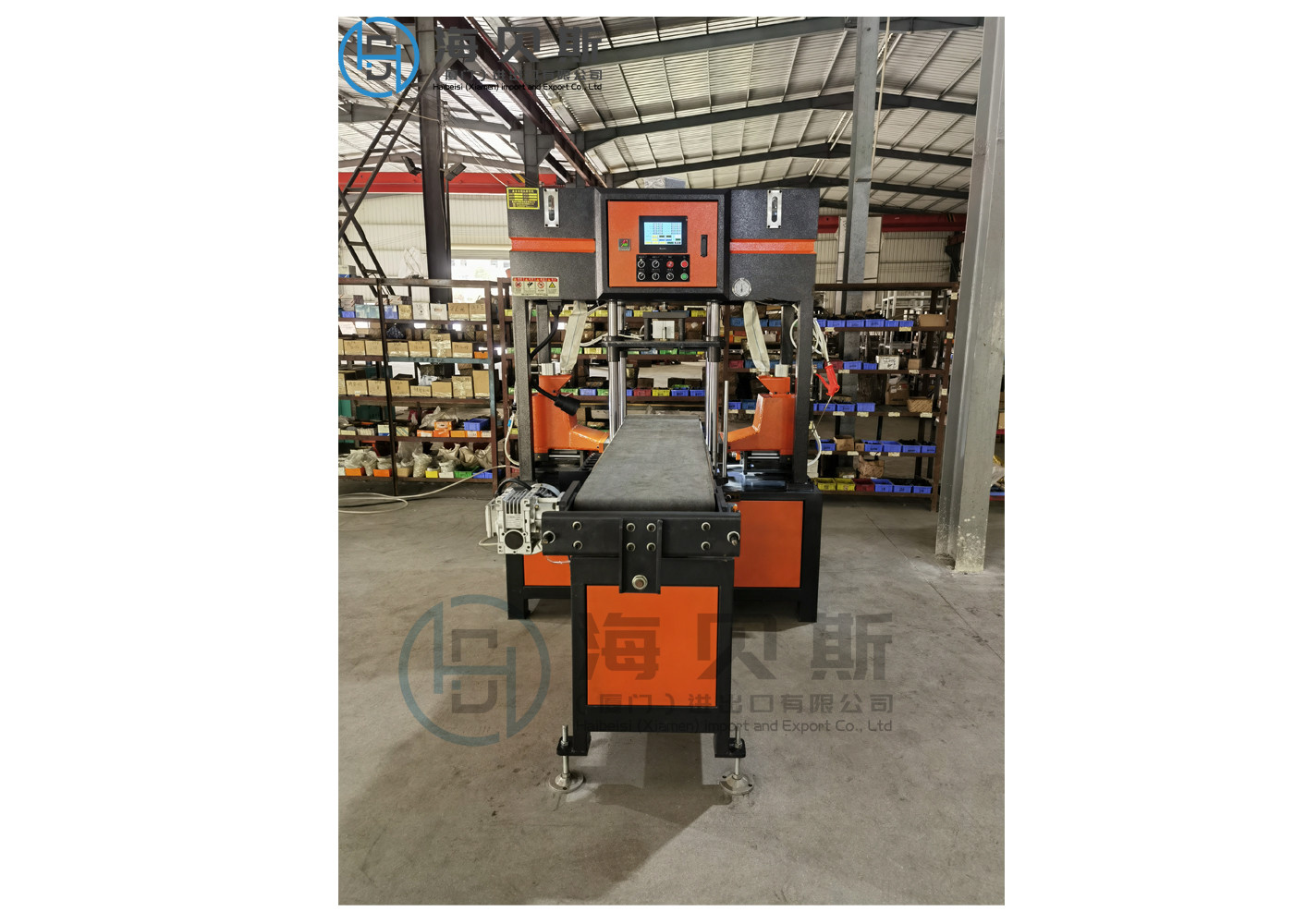

The HBS 400S Automatic Double Head core shooter machine is a specialized equipment designed for iron metal casting processes. It is primarily used to produce sand cores, which are essential components in creating intricate and hollow features within iron castings.
1. Automatic Operation: The machine is designed for automated operation, reducing the need for manual intervention and increasing production efficiency. It is equipped with programmable logic controls (PLC) and a user-friendly interface for easy operation and monitoring.
2. Double Head Configuration: The machine features two shooting heads, enabling simultaneous make shooting from both sides. This helps to improve productivity and reduce cycle times, making it suitable for high-volume production requirements.
3. Precise Sand Shooting: The machine ensures accurate and consistent sand shooting using a pneumatic. It delivers controlled and uniform sand distribution to create high-quality cores with precise dimensions and shapes.
4. Core Box Handling: The HBS 400B is designed to handle core boxes, which are used to shape the sand cores. It accommodates different core box sizes and shapes, allowing versatility in core design and production.
5. Sand Preparation System: The machine typically includes a sand preparation system that ensures the sand mixture used for core production is properly prepared and controlled. This system may involve sand mixing, sand conditioning, and sand quality monitoring.
6. Safety Features: To ensure operator safety, the machine is equipped with various safety features such as emergency stop buttons, interlocks, and safety guarding. These measures help to prevent accidents and protect the operators during machine operation.
The HBS 400B Automatic Double Head core shooter machine is an efficient and reliable solution for iron metal casting processes. It enables the production of high-quality sand cores with precision.
| 1 | Max Sand Core Weight | 3.2kg*2 |
| 2 | Max Mold Size | 340*450*200(mm) |
| 3 | Max Distance Between Nozzies | 270mm |
| 4 | Max Stroke Of Vertical Clamping | ≤300mm |
| 5 | Sand Box Left-Right Distance | 150mm |
| 6 | Power | 8kw |
| 7 | Net Weight | 520kg |
| 8 | Dimension | 1420*680*1700(mm) |
Packing and shipping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:It depends on the size of your products...(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
