| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Name: | Sand Core Machine | Air Consumption: | 0.5m³/min |
|---|---|---|---|
| Type: | Automatic | Casting Method: | Hot Box |
| Control System: | PLC | Condition: | New |
| Warranty: | 1Year | ||
| Highlight: | sand core machine automatic,automatic core shooter machine,core shooter machine 8kw |
||

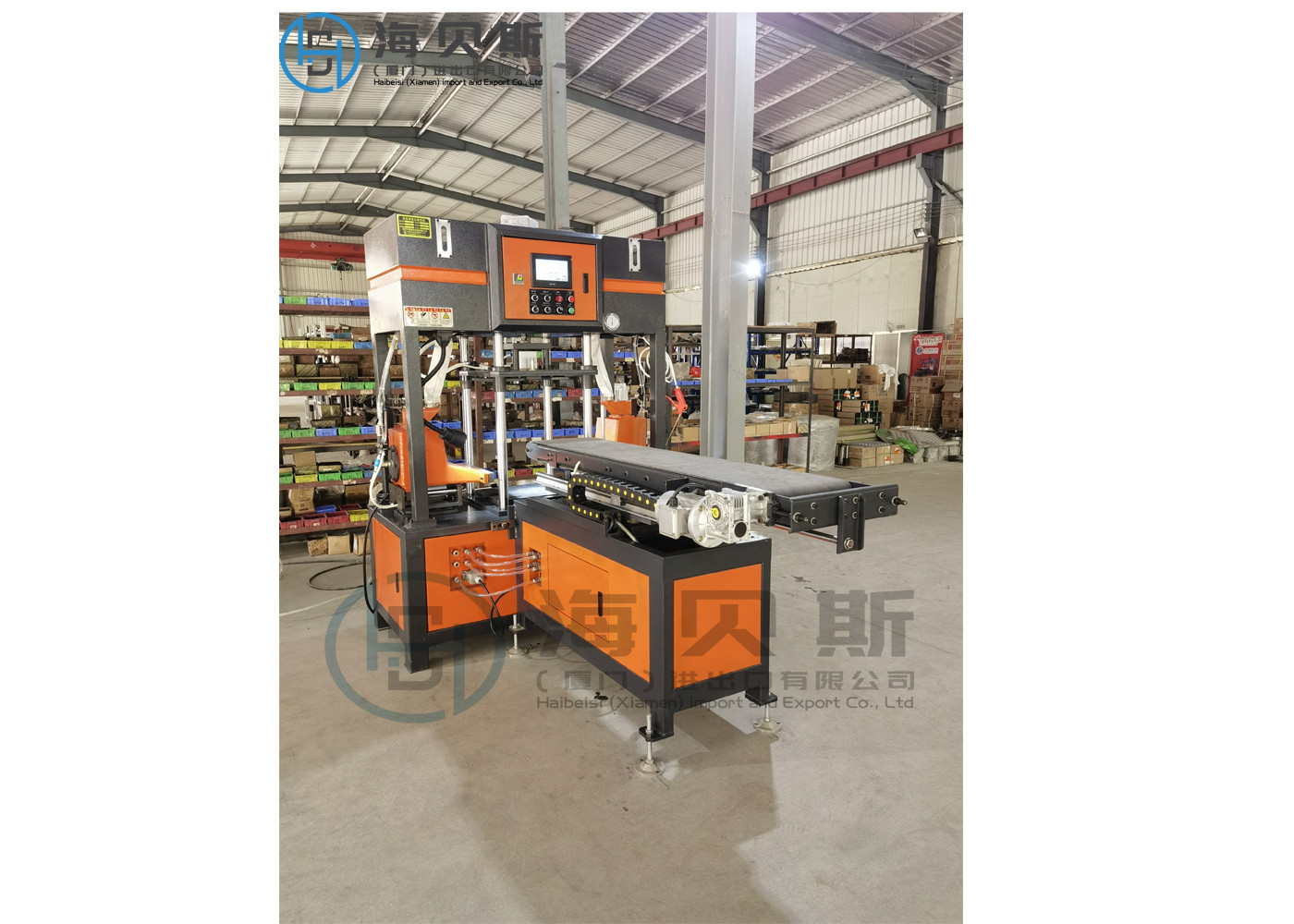

Production description
HBS 400B Sand Core Shooting Machine is a reliable and efficient sand core forming device for sand core casting. It is comprised of a sand core box weighing 3.2KG each, and a total weight of 520KG. It operates with a hot box casting method, and is driven by air pressure of 0.5-0.8MPa, powered by 380V/50Hz. With its advanced core manufacturing technologies, it consistently produces high quality sand cores, ensuring superior product performance and reliability. It is ideal for various sand core casting applications, such as in foundries, automotive, aerospace, and many other industries.
The Sand Core Shooting Machine is designed for precisely forming sand cores in various shapes and sizes. Through its innovative sand core shooting system, it is capable of creating perfect sand cores with intricate details and high accuracy. It is equipped with an advanced control system, which allows users to accurately monitor and control the sand core forming process. Its intuitive interface further simplifies the operation process, making it user-friendly for operators of any experience level.
The Sand Core Shooting Machine is designed for maximum efficiency. With its high output and low maintenance cost, it provides excellent operational cost savings. Its robust construction guarantees stable and reliable performance for a long service life. This makes it a perfect choice for any sand core casting application
Technical Parameters
|
SL |
SPECIFICATION |
|
|
1 |
Max Sand Core Weight |
3.2kg*2 |
|
2 |
Max Mold Size |
340*450*200(mm) |
|
3 |
Max Distance Between Nozzies |
270mm |
|
4 |
Max Stroke Of Vertical Clamping |
≤300mm |
|
5 |
Sand Box Left-Right Distance |
150mm |
|
6 |
Power |
8kw |
|
7 |
Net Weight |
520kg |
|
8 |
Dimension |
1420*680*1700(mm) |

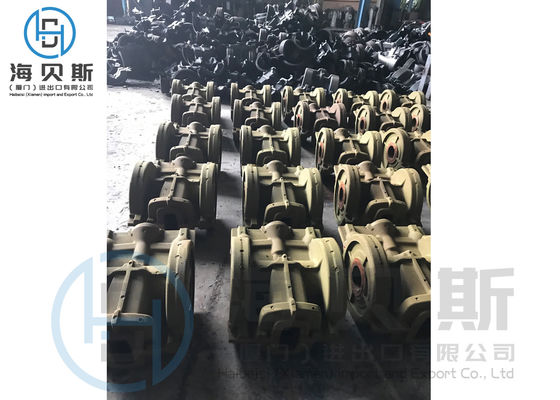

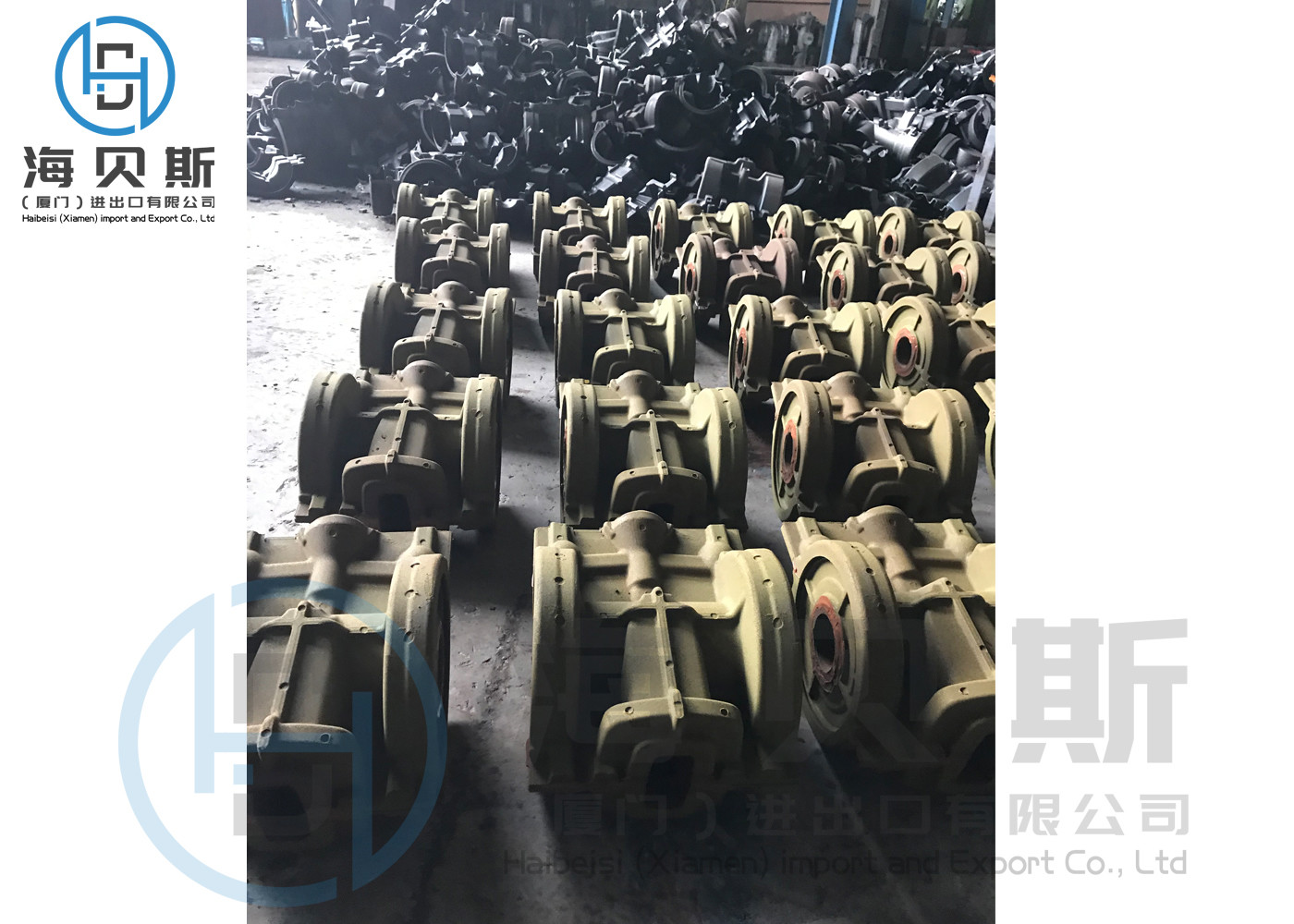

Application

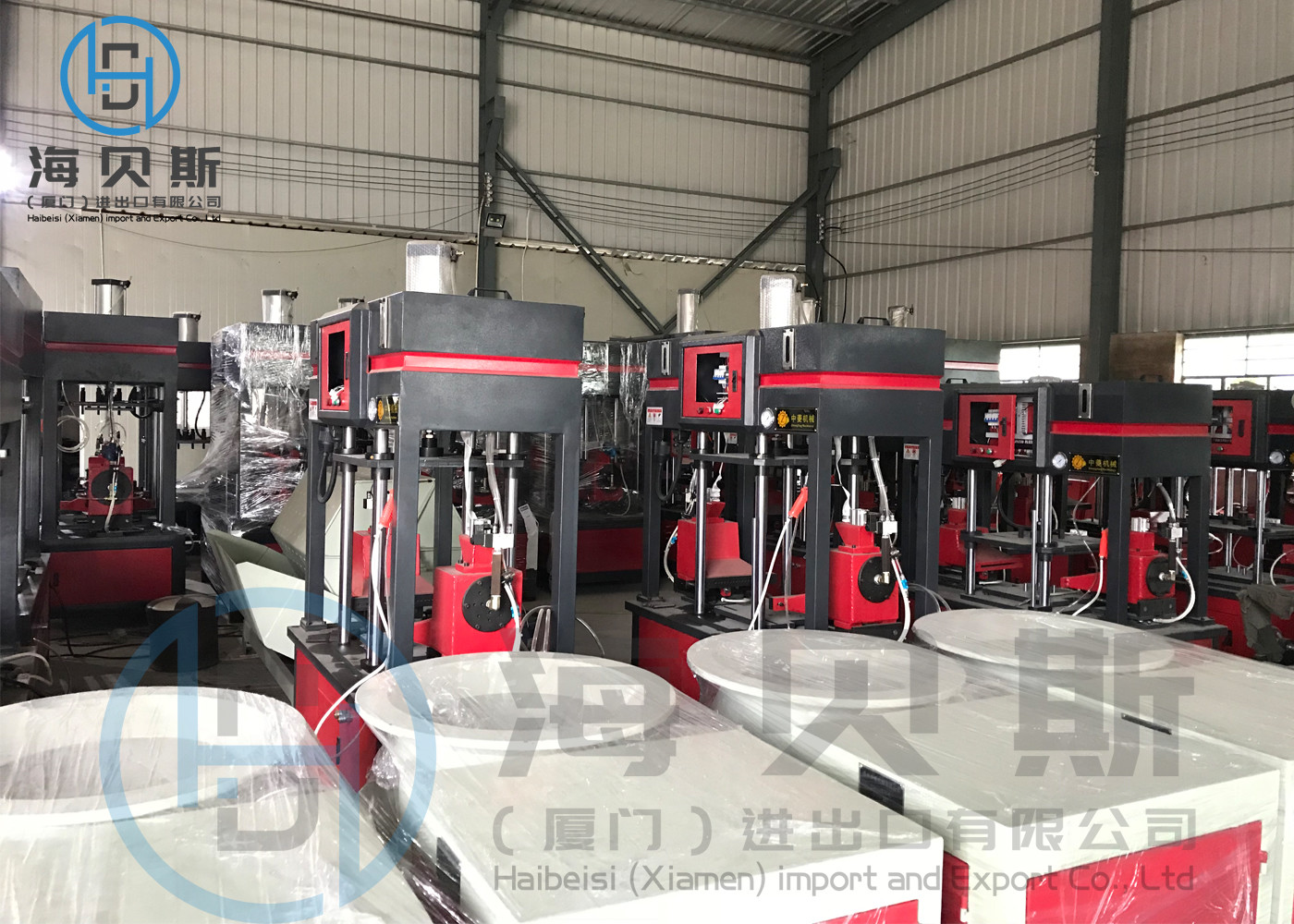

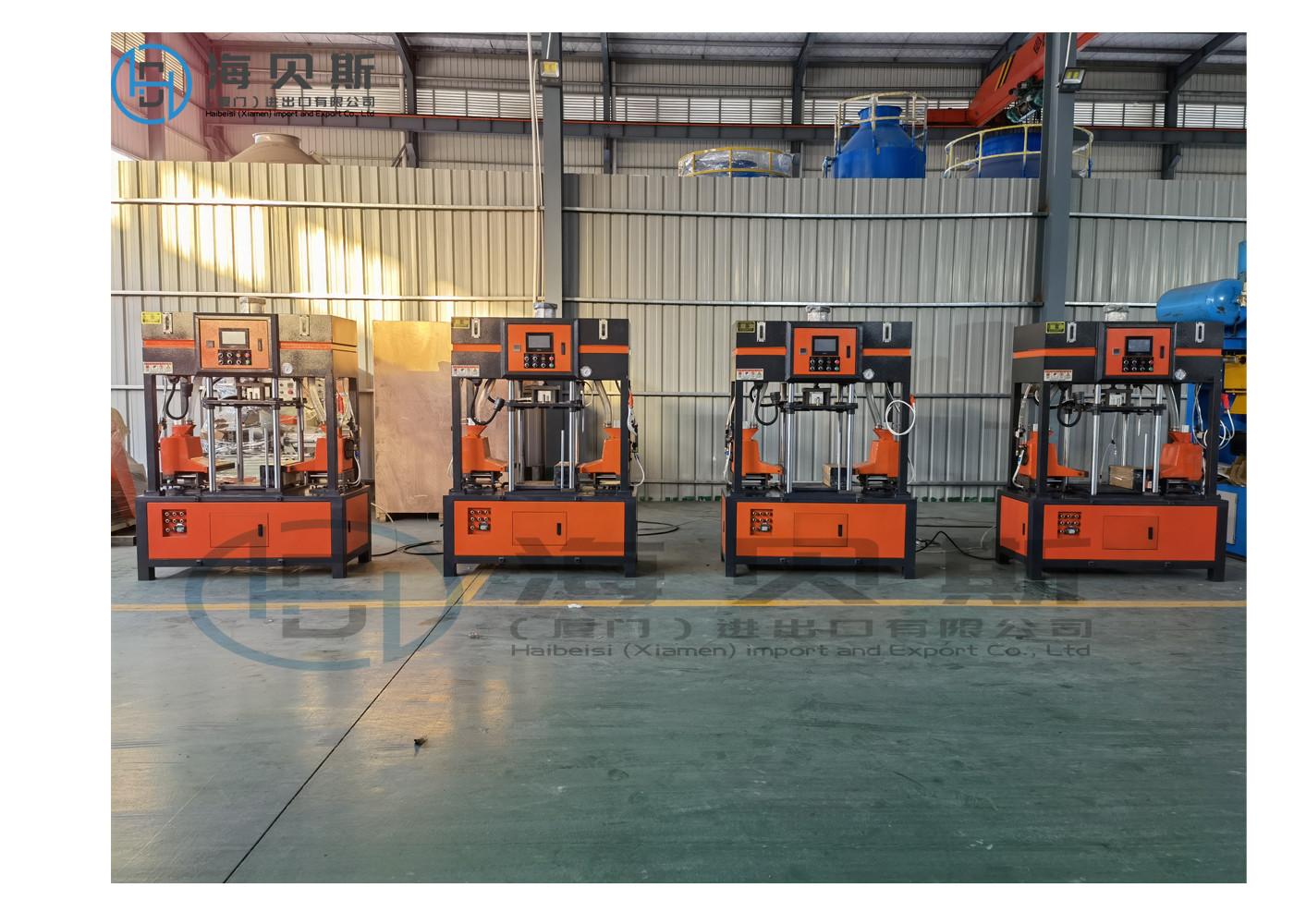

Packing and shipping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different mold&model(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
