| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Name: | Sand Core Shooting Machine | Casting Method: | Hot Box |
|---|---|---|---|
| Air Consumption: | 0.5m³/min | Control System: | PLC |
| Power: | 380V/50Hz | Air Pressure: | 0.5-0.8MPa |
| Type: | Automatic | ||
| Highlight: | sand core shooting machine custom,hot box casting sand core shooting machine,custom sand core machine |
||
Product Description

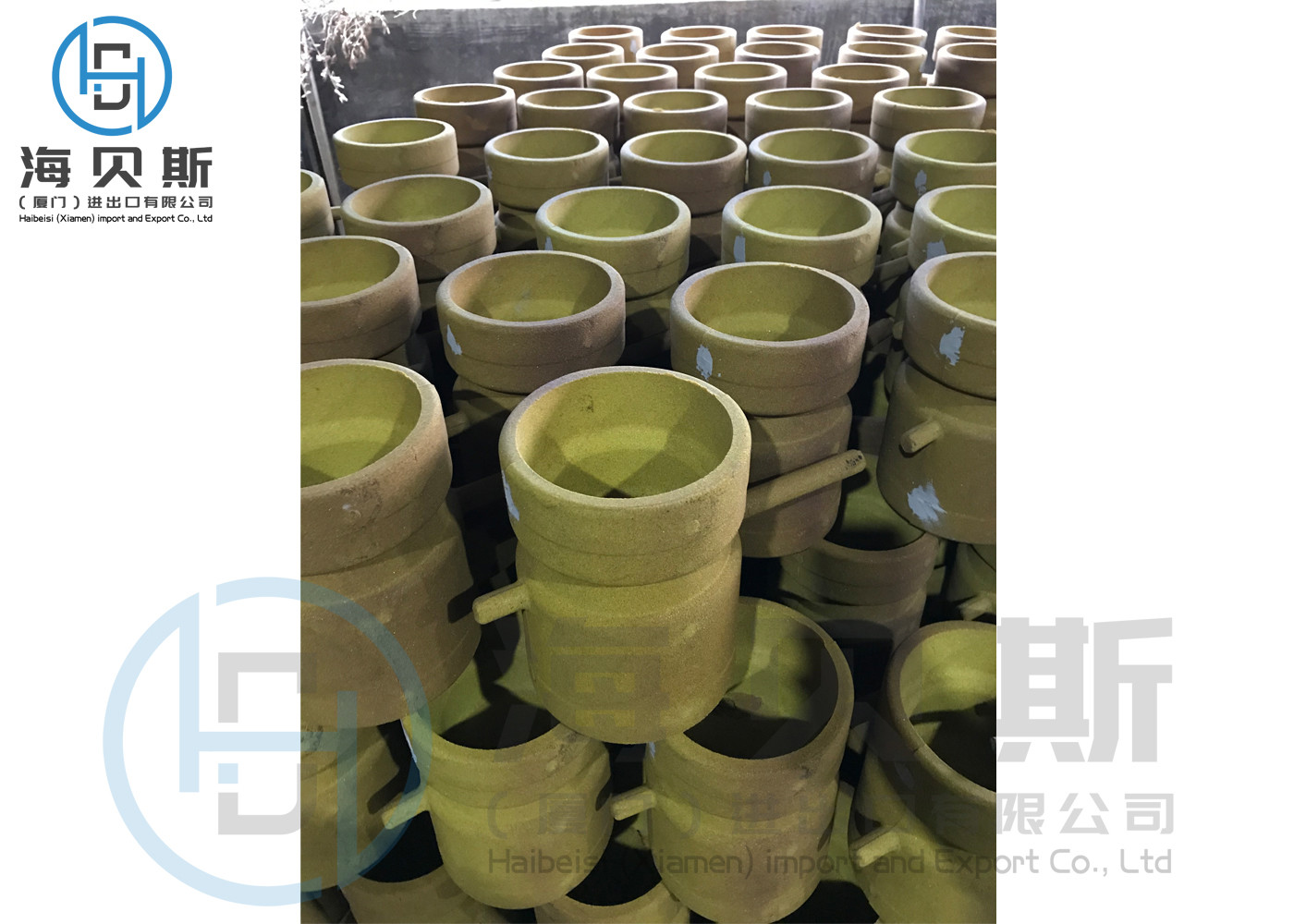

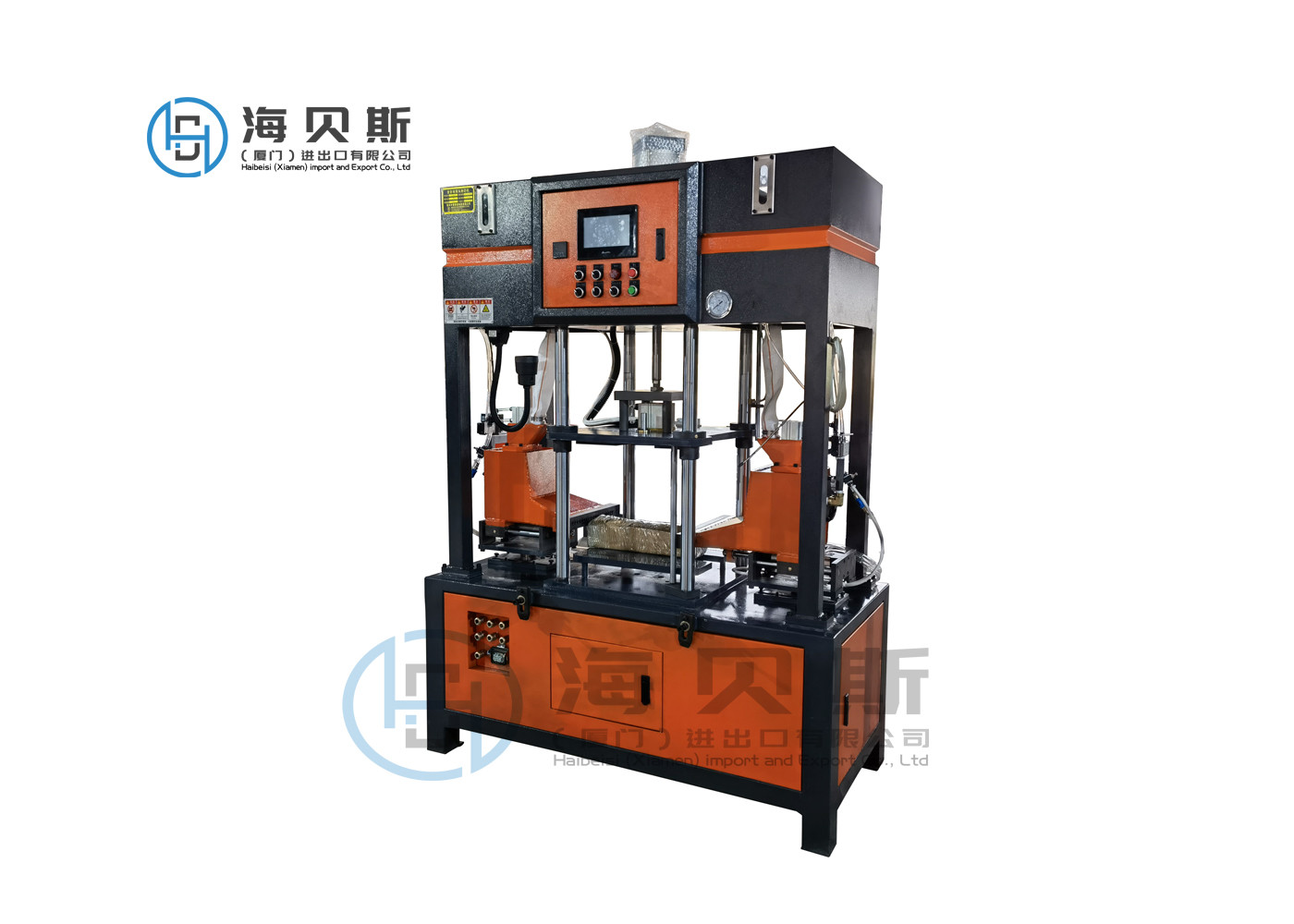

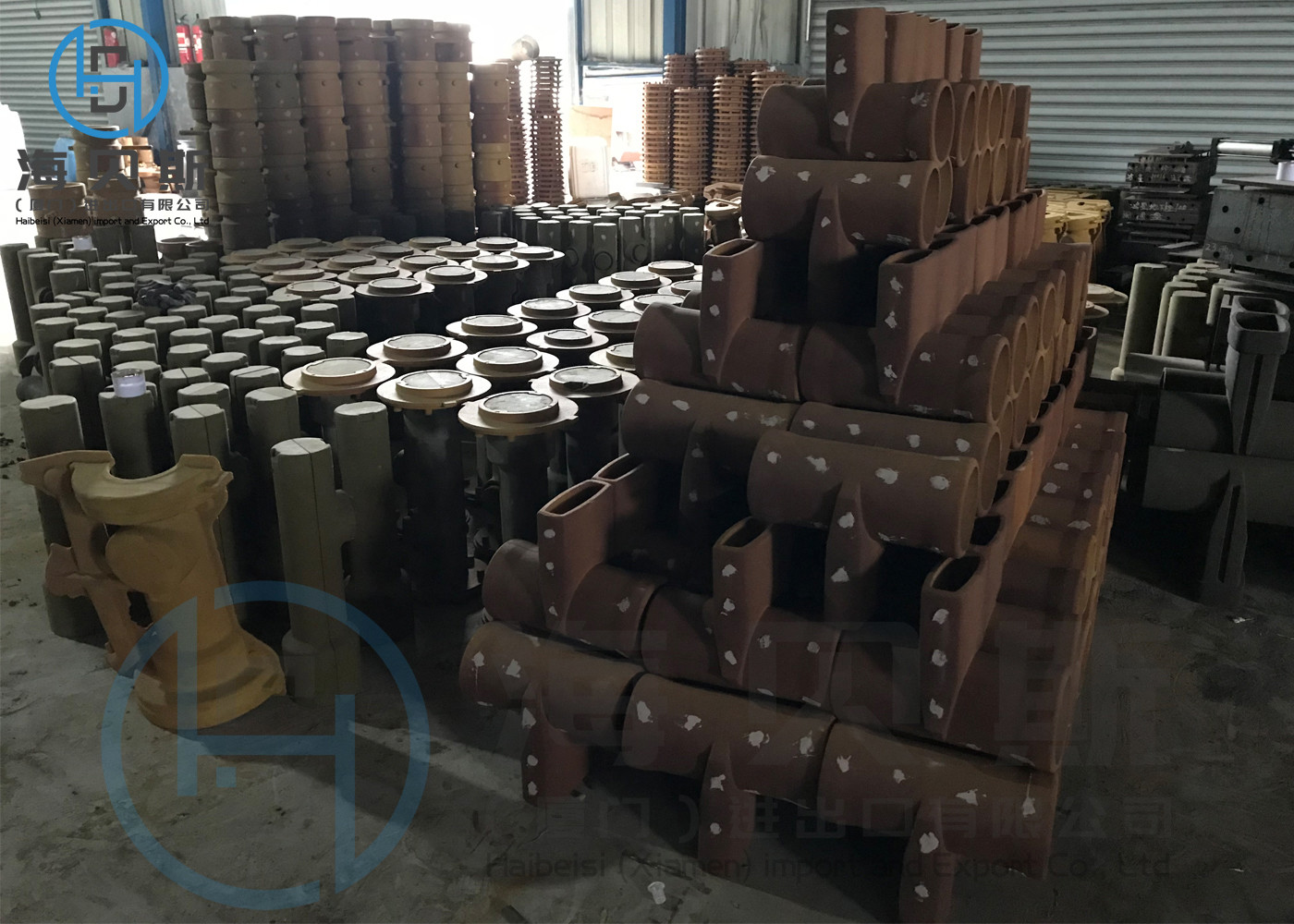

HBS400 core making machine is a type of industrial equipment used in foundries and manufacturing processes to produce sand cores, which are essential components in the casting process. Cores are used to create hollow cavities or internal passages in metal castings, allowing for the formation of complex and intricate shapes.
The core making machine automates the process of creating sand cores by compacting sand mixed with a binding agent into a desired shape. The machine typically consists of a pattern plate or core box, which defines the shape and dimensions of the core, and a mechanism that applies pressure to the sand mixture to compact it. The binding agent, often a resin or clay, helps hold the sand together during the casting process.
Technical Parameters
|
SL |
SPECIFICATION |
|
|
1 |
Max Sand Core Weight |
3.2kg*2 |
|
2 |
Max Mold Size |
340*450*200(mm) |
|
3 |
Max Distance Between Nozzies |
270mm |
|
4 |
Max Stroke Of Vertical Clamping |
≤300mm |
|
5 |
Sand Box Left-Right Distance |
150mm |
|
6 |
Power |
8kw |
|
7 |
Net Weight |
520kg |
|
8 |
Dimension |
1420*680*1700(mm) |
Packing and shipping
FAQ
1. COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2. HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different mold&model(Contact me for the details)
3. DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4. WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5. WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A: 1 year warranty for components and life-long technical supports(details depends on the warranty rules)
