| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Product Name: | Sand Core Shooting Machine Iron Metal Casting | Control System: | PLC |
|---|---|---|---|
| Air Pressure: | 0.5-0.8MPa | Power: | 380V/50Hz |
| Casting Method: | Hot Box | Type: | Automatic |
| Warranty: | 1Year | Name: | Sand Core Shooting Machine |
| Highlight: | High Performance Sand Core Shooter,ISO Sand Core Shooter |
||
High-Performance Sand Core Shooter With Hot Box Casting Method Iron Casting Machine

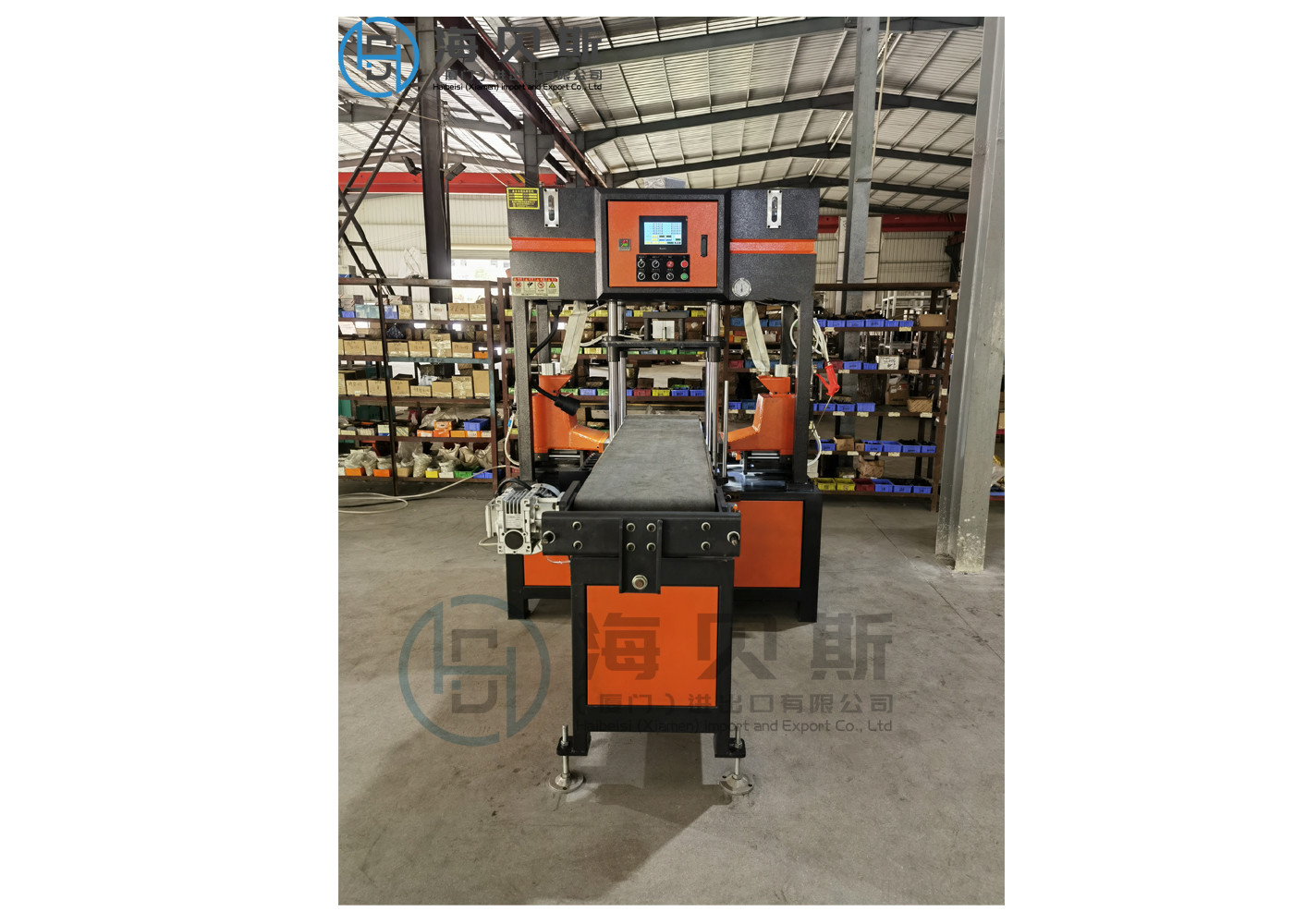

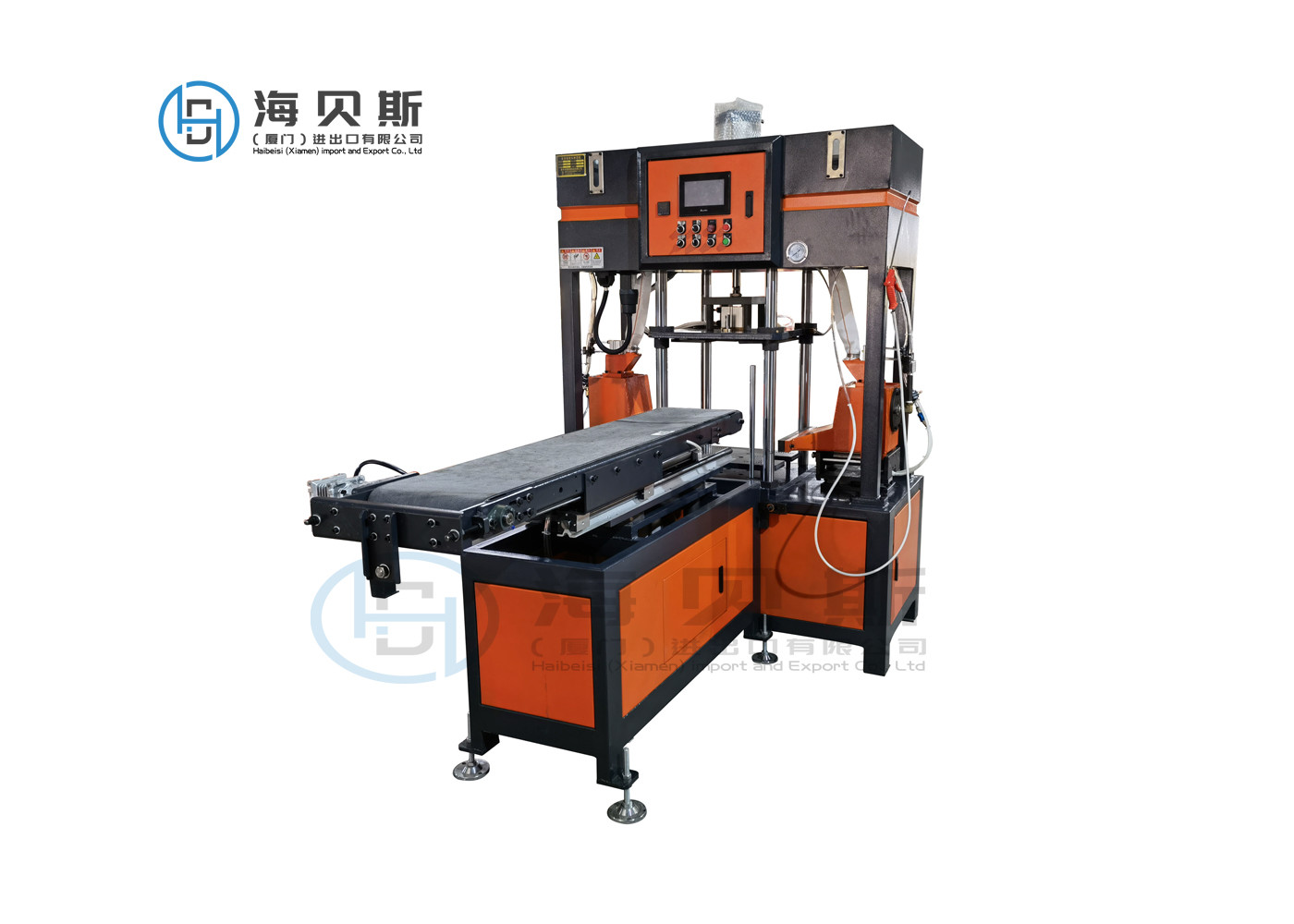

HBS 400B Sand Core Shooting Machine is a highly versatile and efficient sand core injection casting machine designed for iron metal casting. This machine is capable of producing sand cores with a box size of 340*450*200mm and a maximum weight of 3.2KG*2. It is equipped with an air consumption rate of 0.5m³/min, making it a great choice for high-speed production.
The hot box method of casting ensures that the sand core is of high quality and free from defects. The Sand Core Shooting Machine is easy to operate and maintain, and is perfect for any casting shop or foundry that needs to produce high-quality iron metal castings quickly and efficiently.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 3.2kg*2 |
| 2 | Max Mold Size | 340*450*200(mm) |
| 3 | Max Distance Between Nozzies | 270mm |
| 4 | Max Stroke Of Vertical Clamping | ≤300mm |
| 5 | Sand Box L-R Distance | 150mm |
| 6 | Power | 7.5kw |
| 7 | Net Weight | 800kg |
| 8 | Dimension | 1420*680*1700(mm) |
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different model(Cotact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
