| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Condition: | New | Casting Method: | Hot Box |
|---|---|---|---|
| Power: | 380V/50Hz | Type: | Automatic |
| Control System: | PLC | Warranty: | 1Year |
| Name: | Foundry Core Making Machines | ||
| Highlight: | foundry core making machines 380v,380v core making machine foundry,50hz core making machine foundry |
||

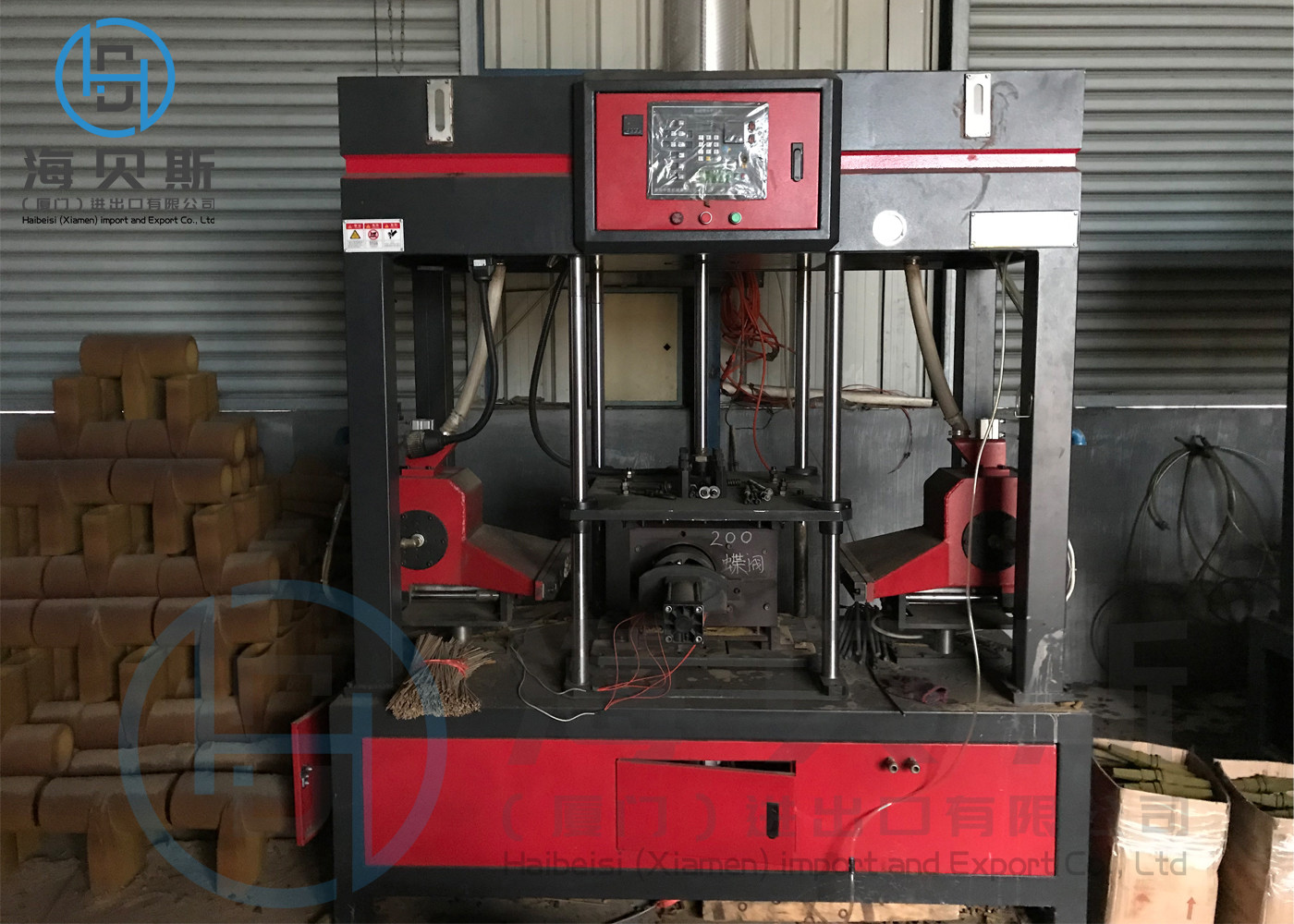

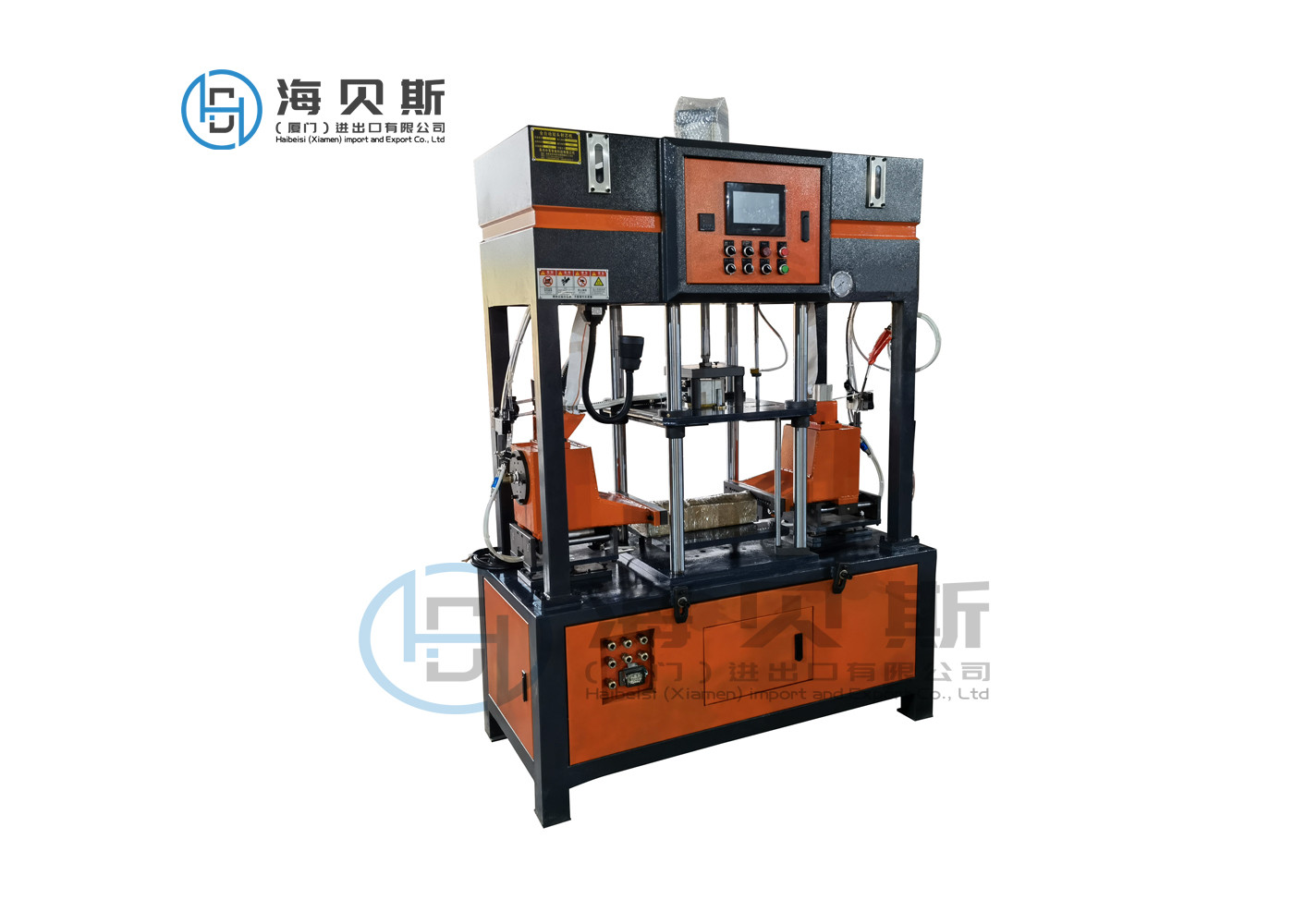

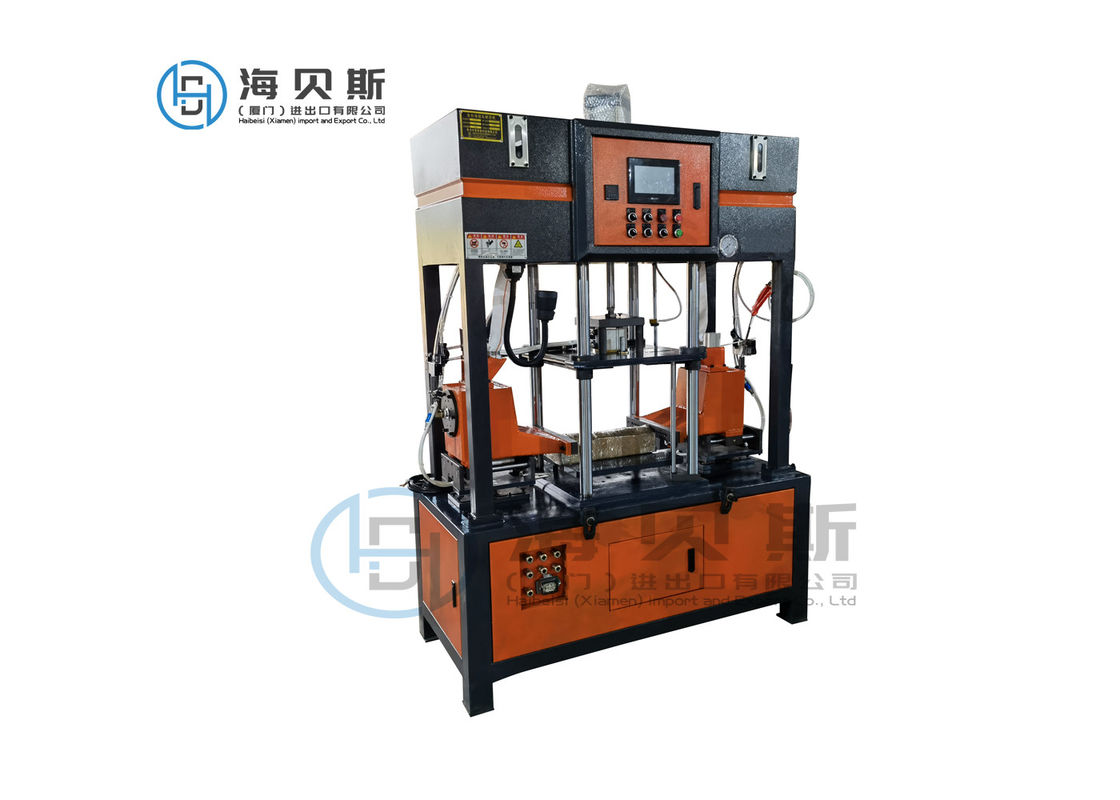

HBS 400B Sand Core Shooter is a sand core forming machine used for manufacturing sand cores. It has a weight of 520KG and adopts a hot box casting method. The size of its core box is 340*450*200mm. It requires 0.5m³/min air consumption and 0.5-0.8MPa air pressure for optimal operation. This Sand Core Manufacturing Machine is ideal for mass production of sand cores for various industries
| Product Name | Sand Core Shooting Machine Iron Metal Casting |
|---|---|
| Air Pressure | 0.5-0.8MPa |
| Power | 380V/50Hz |
| Weight | 520KG |
| Core Box Weight | 3.2KG*2 |
| Core Box Size | 340*450*200mm |
| Casting Method | Hot Box |
| Type | Automatic |
| Control System | PLC |
| Air Consumption | 0.5m³/min |
Packing and Shiping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different model(Cotact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
