| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Air Pressure: | 0.5-0.8MPa | Condition: | New |
|---|---|---|---|
| Power: | 380V/50Hz | Type: | Automatic |
| Weight: | 520KG | Control System: | PLC |
| Name: | Sand Core Shooting Machine |

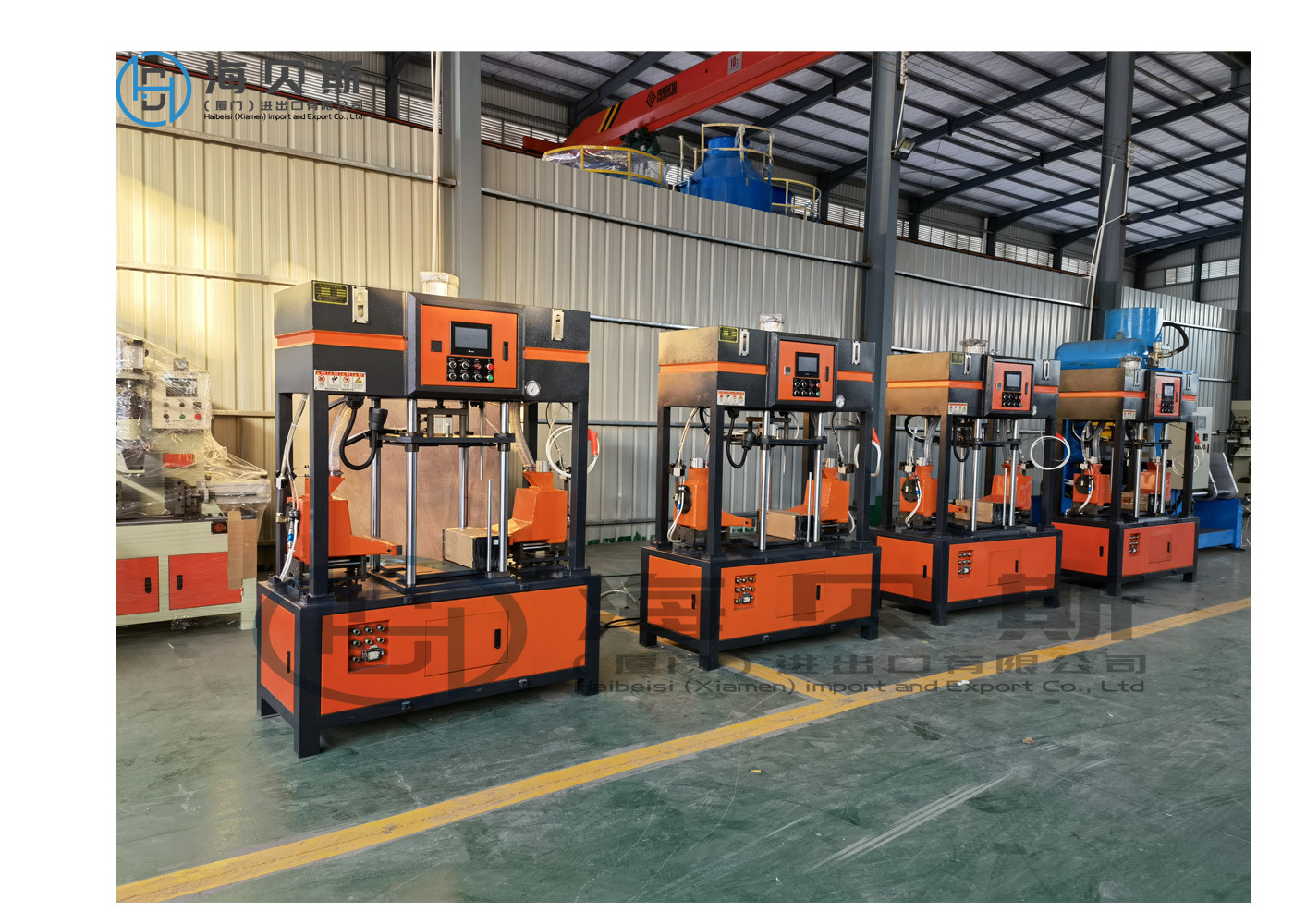

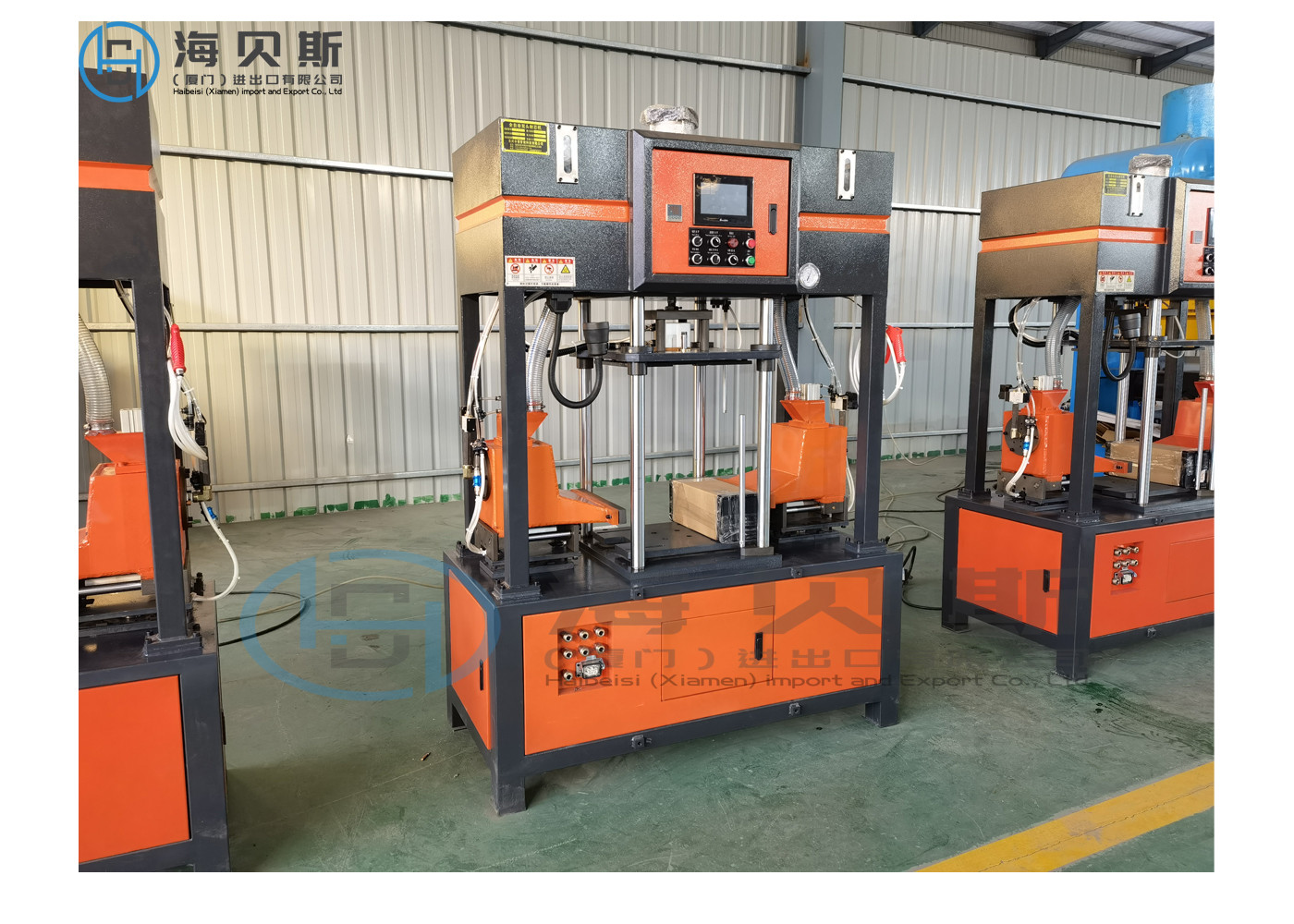

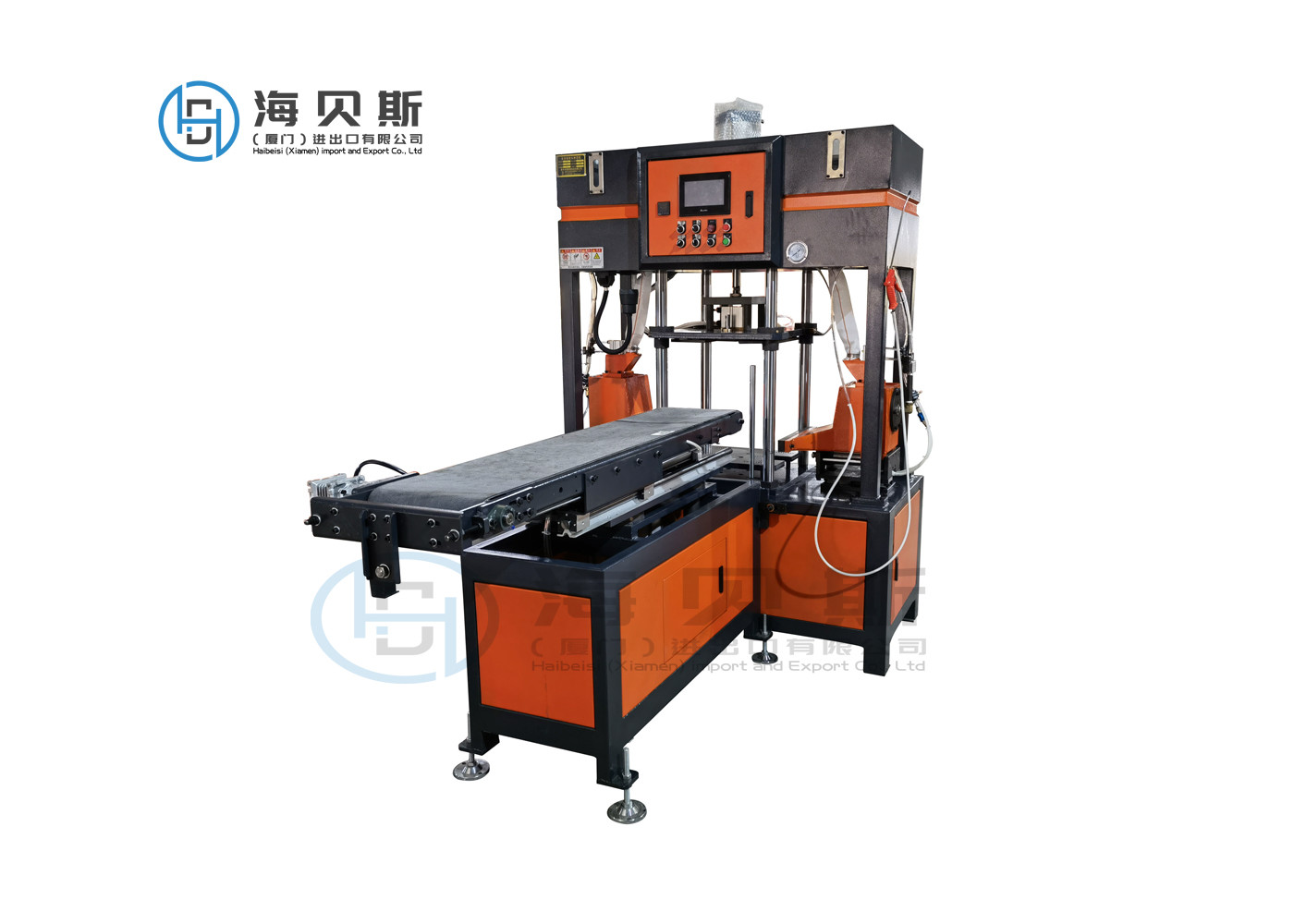

HBS 400B Sand Core Shooting Machine is an automatic machine that helps to manufacture sand cores with high accuracy and precision. It is specifically designed for iron metal casting and consists of two core boxes of 340*450*200mm in size each weighing 3.2kg. The whole machine weighs 520kg and is highly efficient in producing accurate sand cores. It is equipped with a sand core injector which allows users to obtain the desired results quickly and easily. This Sand Core Manufacturing Machine is ideal for various industrial applications, and its ability to produce high-quality sand cores makes it a great choice for professionals and businesses.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 3.2kg*2 |
| 2 | Max Mold Size | 340*450*200(mm) |
| 3 | Max Distance Between Nozzies | 270mm |
| 4 | Max Stroke Of Vertical Clamping | ≤300mm |
| 5 | Sand Box Left-Right Distance | 150mm |
| 6 | Power | 8kw |
| 7 | Net Weight | 520kg |
| 8 | Dimension | 1420*680*1700(mm) |
Packing and shipping
FAQ
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:It depends on the size of your products...(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
