| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HBS |
| Certification: | CE,ISO |
| Model Number: | 400B |
| Minimum Order Quantity: | ≥1Set |
| Price: | USD1000-5000 |
| Packaging Details: | Plywood packed with export sea standard |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T,L/C.D/A.D/P |
| Supply Ability: | 50Sets per month |
| Control System: | PLC | Warranty: | 1Year |
|---|---|---|---|
| Type: | Automatic | Air Pressure: | 0.5-0.8MPa |
| Condition: | New | Power: | 380V/50Hz |
| Casting Method: | Hot Box | Name: | Sand Core Shooting Machine |
| Highlight: | sand core shooting machine automatic,sand core shooting machine automatic operation,automatic sand core machine |
||

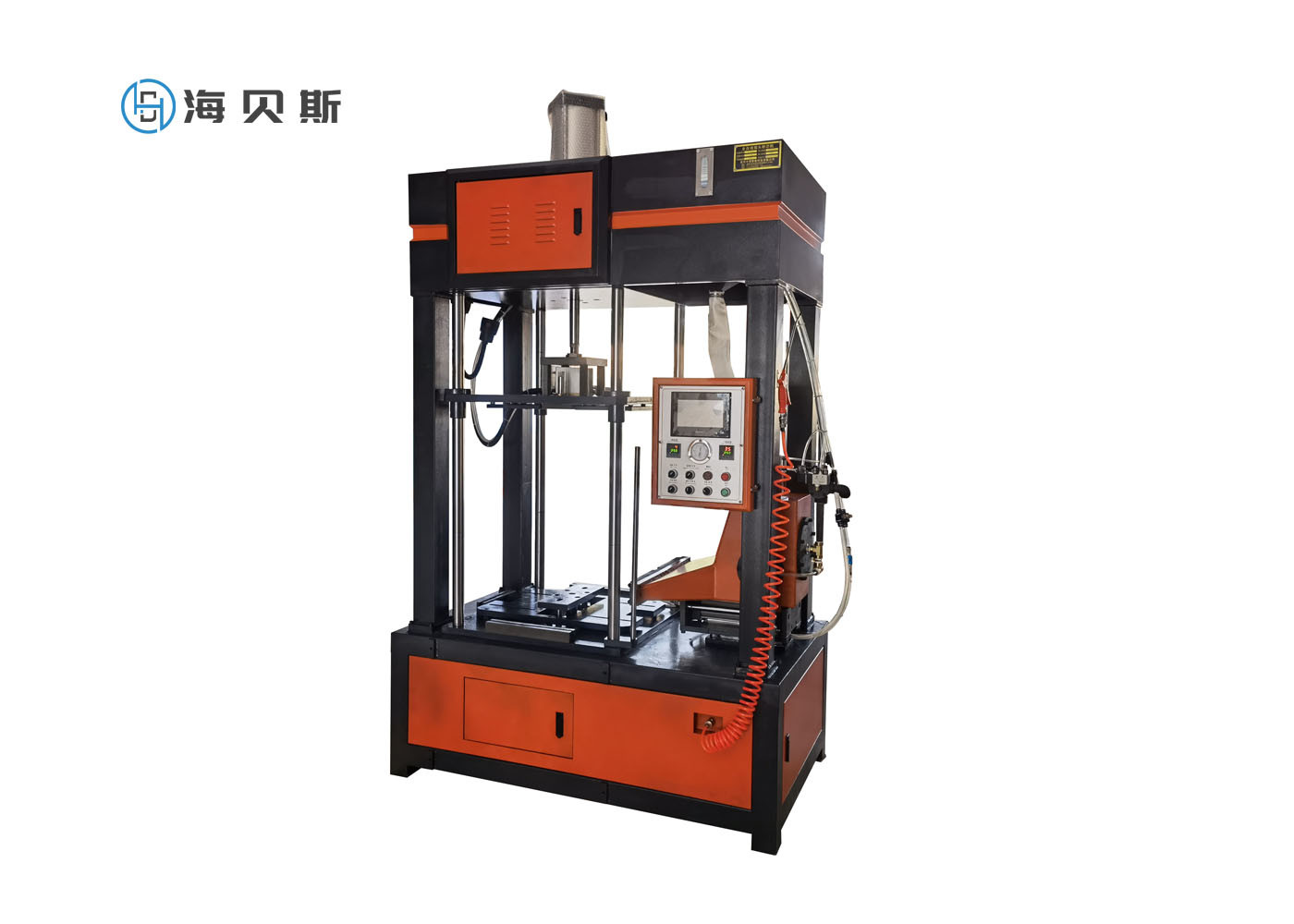

The Sand Core Shooting Machine is a high-quality, durable and efficient machine used for sand core manufacturing. It is an automatic machine that is designed to make the production of sand cores easier and faster. With its precise control and advanced PLC control system, it is able to produce consistent and accurate sand cores with minimal human intervention.
The Sand Core Shooting Machine is specifically designed for hot box casting method, making it suitable for various industries such as automotive, aerospace, and manufacturing. This machine is ideal for producing sand cores for complex and intricate castings.
The Sand Core Shooting Machine operates with a 380V/50Hz power supply, ensuring stable and efficient performance. It is equipped with advanced technology that allows for automatic operation, minimizing the need for manual labor and increasing productivity.
Overall, the Sand Core Shooting Machine is a reliable, efficient and high-quality sand core manufacturing machine that is suitable for various industries. With its automatic operation, precise control, and hot box casting method, it is able to produce consistent and accurate sand cores, making it an essential tool for any sand core production process.
| SL | SPECIFICATION | |
| 1 | Max Sand Core Weight | 8kg*2 |
| 2 | Max Mold Size | 540*650*350mm |
| 3 | Max Distance Between Nozzies | 360mm |
| 4 | Max Stroke Of Die Opening | ≤600mm |
| 5 | Total Power | 12kw |
| 6 | Net Weight | 880kg |
| 7 | Dimension(L*W*H) | 1900*880*2350mm |
1.COULD YOU ARRANGE THE ENGINEER FOR INSTALLATION AND COMMISSIONING?
A:Obviously yes,but the buyer pay the charges.
2.HOW TO CHOOSE CORE MAKING MACHINE?
A:Different products require different model(Contact me for the details)
3.DO YOU PROVIDE ANY SPARE PARTS WITH THE MACHINE?
A:Yes,we will provide some common parts for you according to our packing list(cotact us for packing list)
4.WHAT IS THE DELIVERY PERIOD AFTER PLACING THE ORDER?
A:Normally 10-15days after deposit..
5.WHAT IS THE WARRANTY PERIOD AND AFTER-SERVICE FOR YOUR MACHINE?
A:1 year warranty for components and life-long technical supports(details depends on the warranty rules)
